BELDEN 1813A

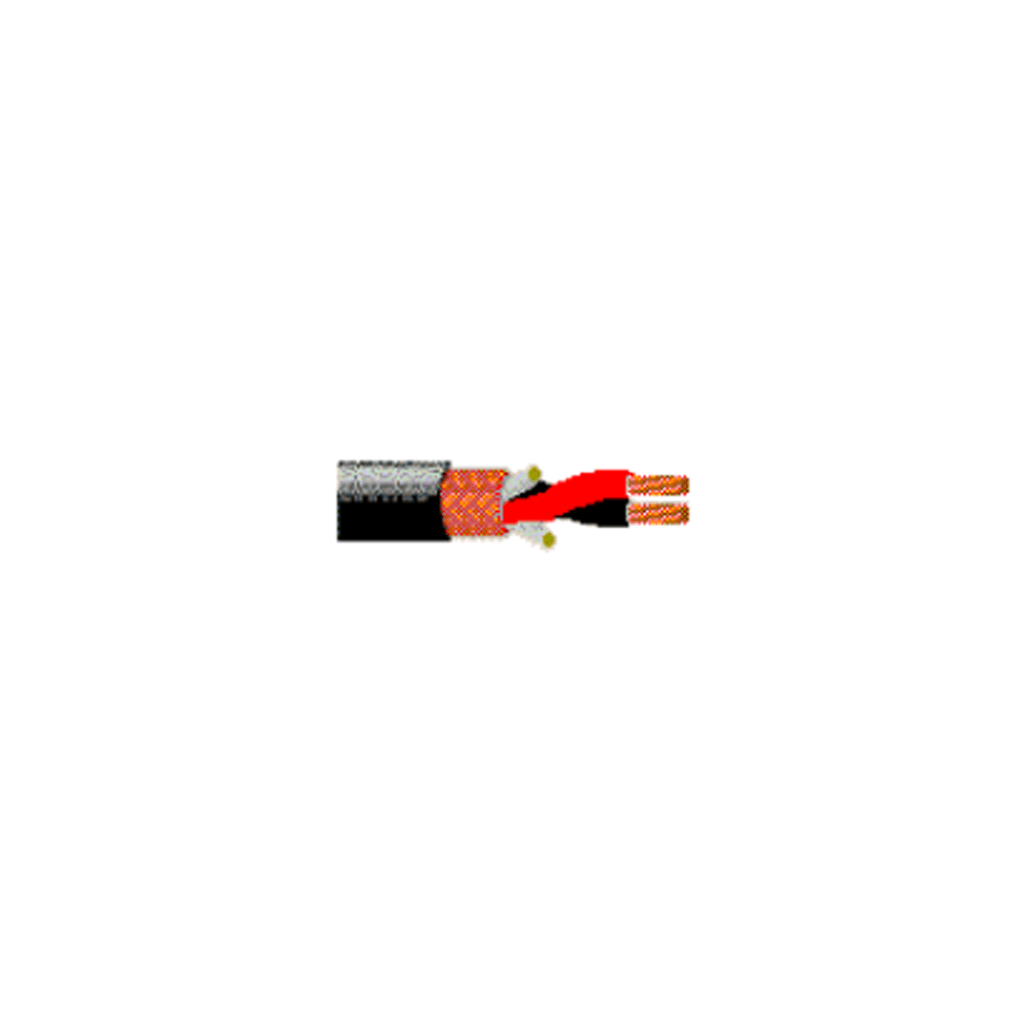

Audio Cable, 2 Conductor 24 AWG, BC
Product Description
Audio Cable, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.059 in mm | Blue, Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Spiral Serve / Screen | Bare Copper (BC) | 90% | ||
