BELDEN 2221

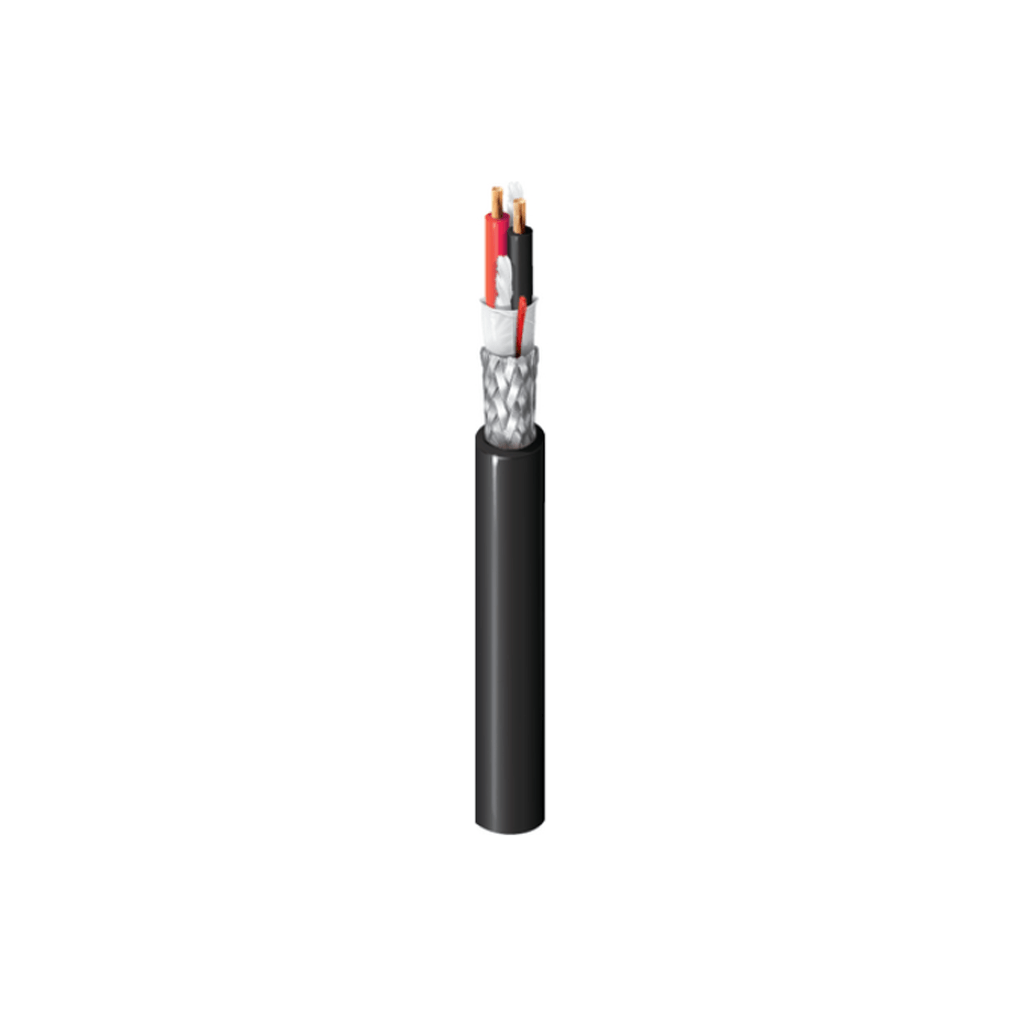

Audio Cable, 2 Conductor 26 AWG, TC
Product Description
26 AWG stranded (30×40) BC conductors cabled with fillers, Datalene® insulation, conductors cabled with fillers, TC “French Braid” Shield (95% coverage), Belflex PVC jacket.
Technical Specifications
| Insulation | |||
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE – Polyethylene (Foam) | 0.050 in (1.3 mm) | Red & Black | HDPE |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| French Braid | Tinned Copper (TC) | 95% | |
| Outer Jacket | |||
| Material | Material Trade Name | Nom. Diameter | |
| PVC – Polyvinyl Chloride | Belflex® | 0.17 in | |
