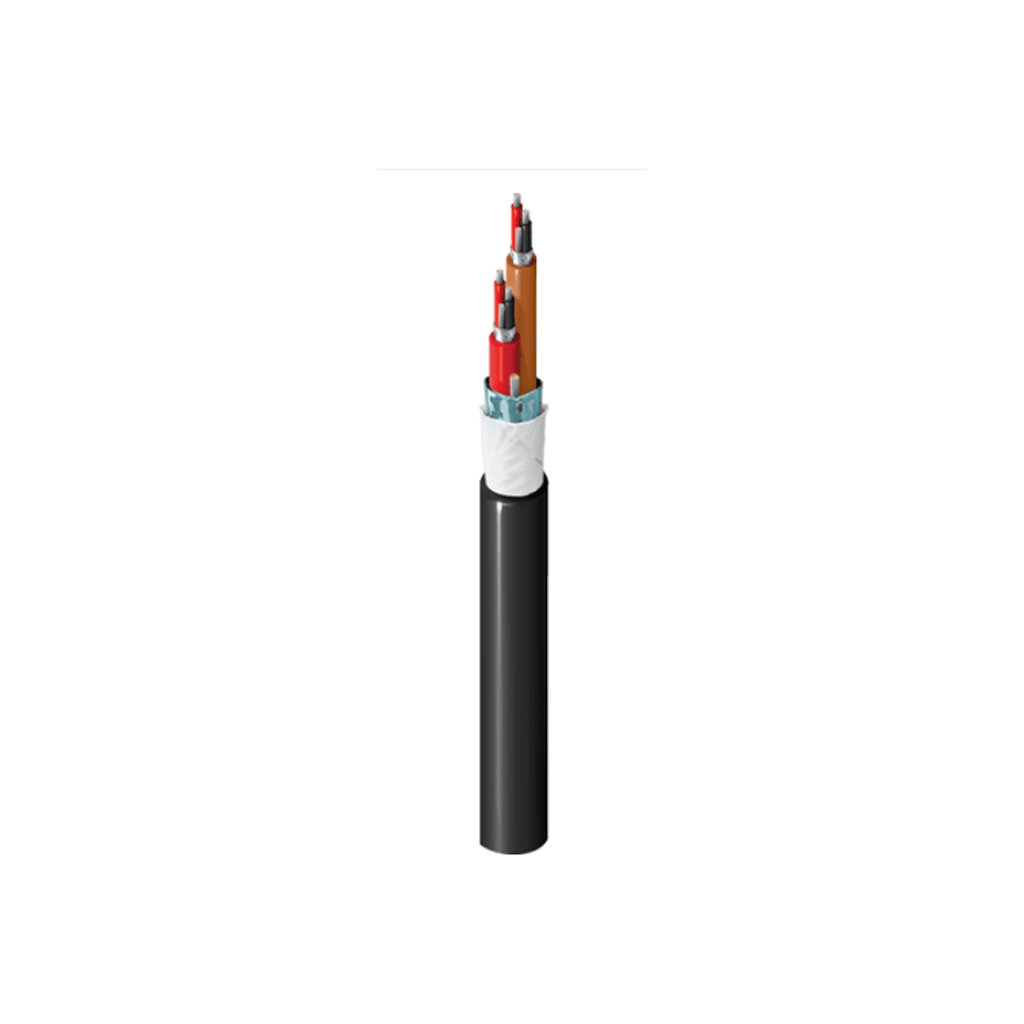

BELDEN 2815RW
Indoor/Outdoor Stadium Cable, Analog Audio Snake, 4 Pair 22 AWG, stranded, CMR
Product Description
4 Pair 22 AWG stranded (7×30) TC conductor, polyolefin insulation, individually shielded with bonded Beldfoil®, numbered/color-coded PVC jackets, jackets and shields are bonded so both strip simultaneously, water blocking tape, overall black CPE jacket and nylon rip cord
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.05 in (1.3 mm) | Red & Black |
| Inner Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
