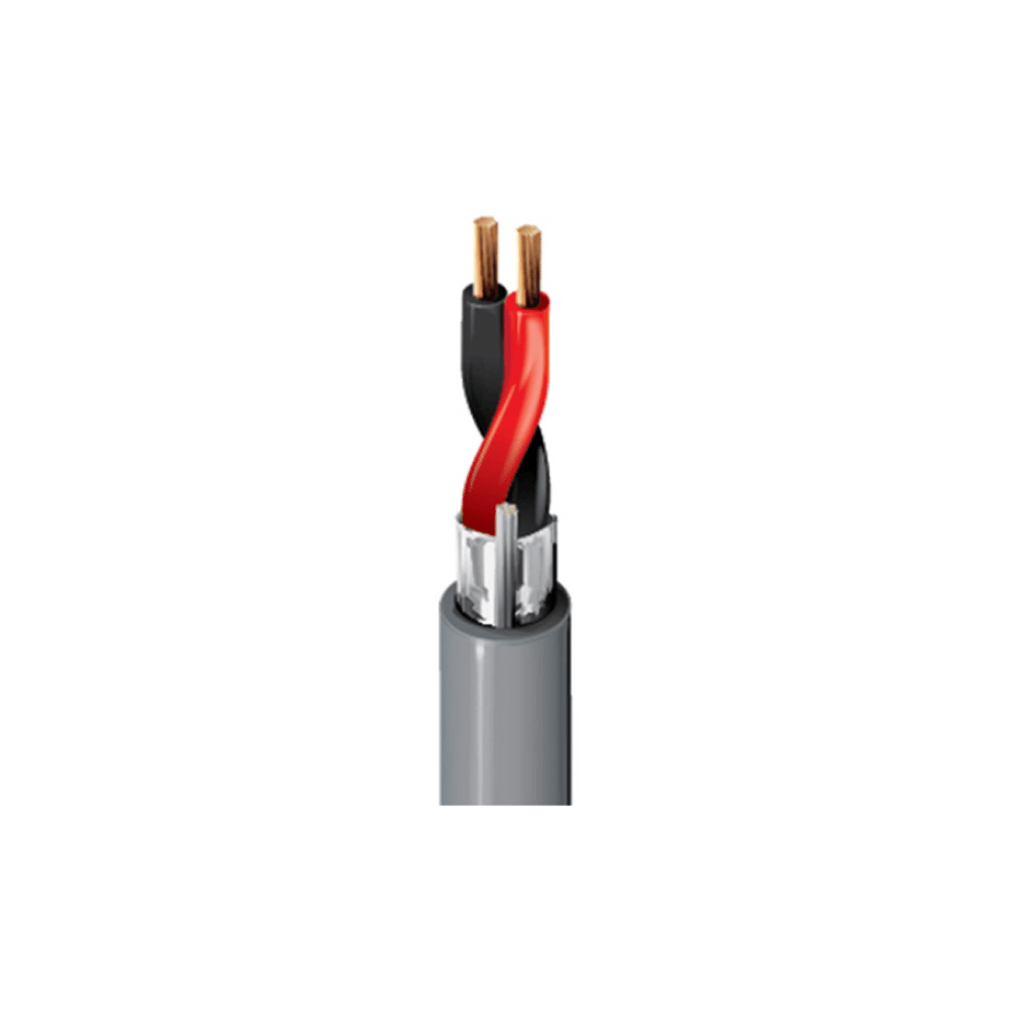

BELDEN 4100FLW
Security & Sound, 2 Conductor 14 AWG BC, LSZH, Shielded, Cca
Product Description
Security & Commercial Audio Cable, 2-14 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.28 mm (0.011 in) | 2.35 mm (0.0925 in) | Black, White |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.1 mm (0.043 in) | 6.8 mm (0.27 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C To +70°C | |
