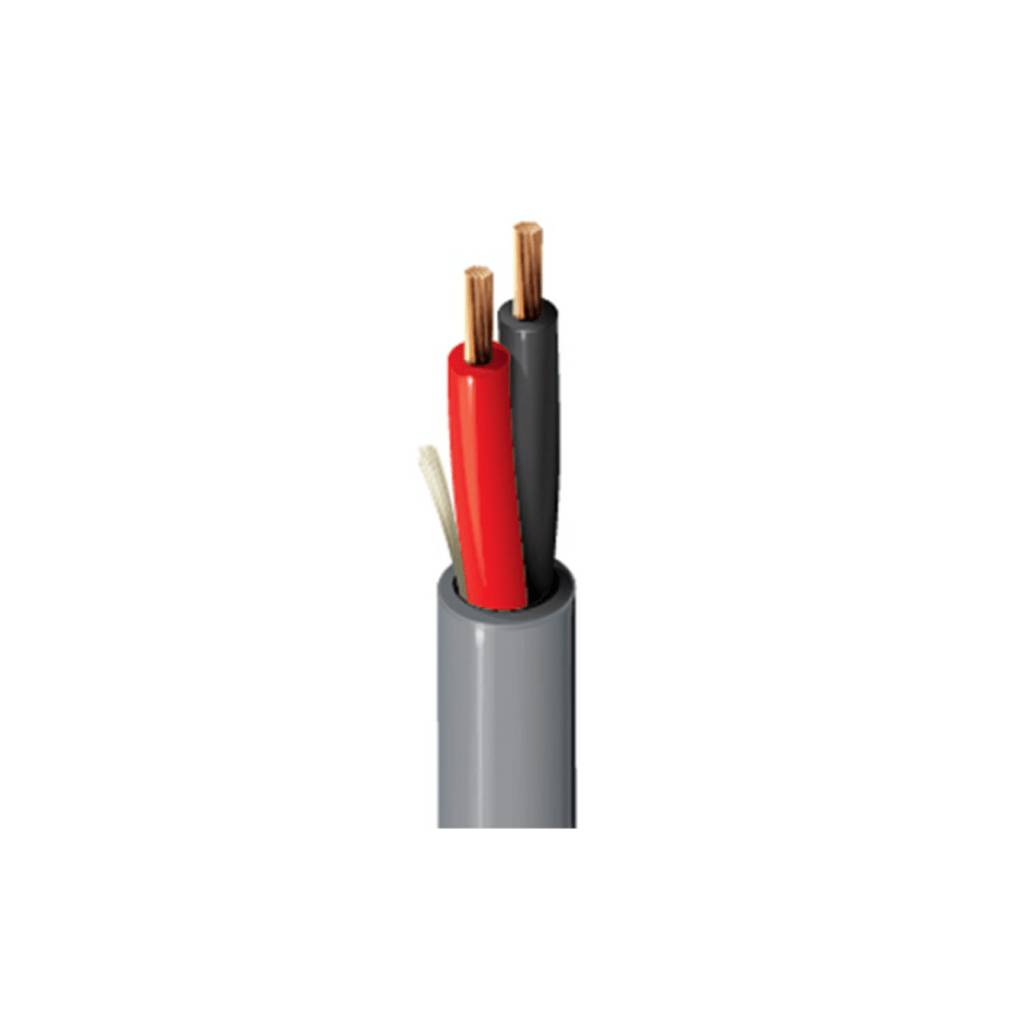

BELDEN 4100ULV
Security & Sound, 2 Conductor 14 AWG BC, LSZH, B2ca
Product Description
Security & Commercial Audio Cable, 2-14 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, LSZH jacket with ripcord, CPR B2ca
Technical Specifications
| Insulation | |||
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 2.35 mm | 0.05 mm | 0.28 mm |
| Outer Jacket | |||
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 6.75 mm | 1.1 mm | Yes |
| Temperature Range | |||
| Installation Temperature Range: | -20°C To +70°C | ||
| Storage Temperature Range: | -30°C To +70°C | ||
| Operating Temperature Range: | -20°C To +70°C | ||
