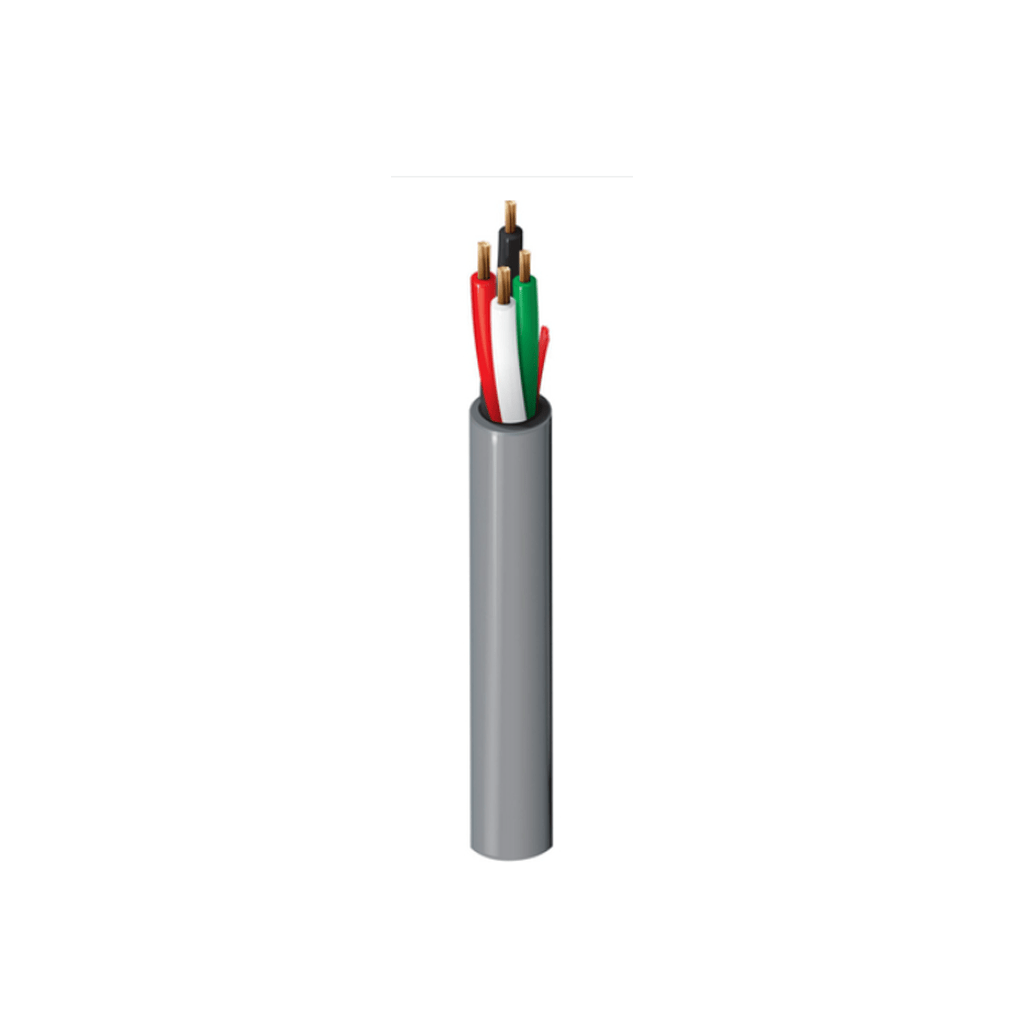

BELDEN 4102UE
Security & Sound, 4 Conductor 14 AWG BC, LSZH
Product Description
Security & Commercial Audio Cable, 4-14 AWG stranded (19×27) bare copper conductors with polyolefin insulation, FRNC/LSZH jacket with ripcord.
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.28 mm (0.011 in) | 2.34 mm (0.0921 in) | Black, Red, White, Green |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.4 mm (0.016 in) | 6.8 mm (0.27 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C To +70°C | |
