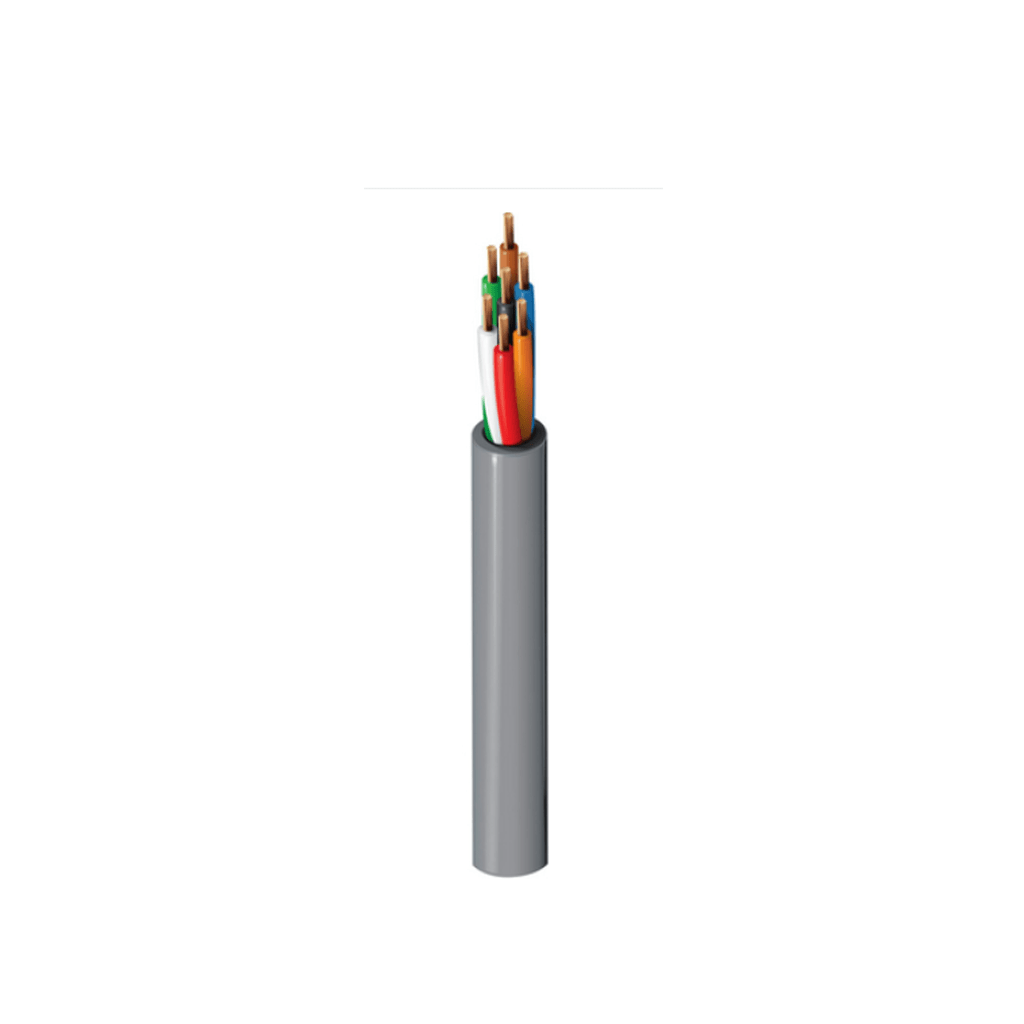

BELDEN 4305ULW
Security & Sound, 7 Conductor 18 AWG BC, LSZH, Cca
Product Description
Security & Commercial Audio Cable, 7-18 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.25 mm (0.0098 in) | 1.72 mm (0.0677 in) | Black, Red, White, Green, Brown, Blue, Orange |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.1 mm (0.043 in) | 7.4 mm (0.29 in) | Yes | |
