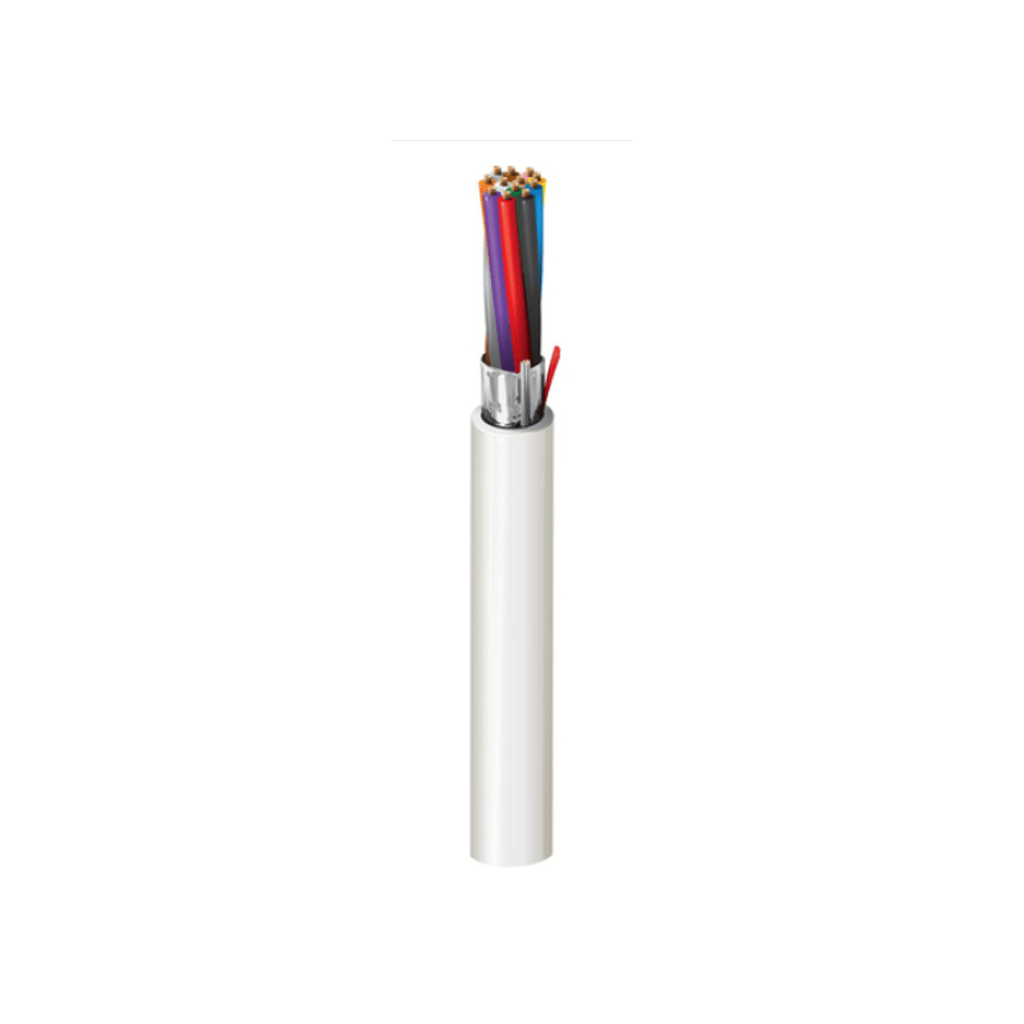

BELDEN 4309FLW
Security & Sound, 12 Conductor 18 AWG, BC, shielded, LSZH, Cca
Product Description
Security & Commercial Audio Cable, 12-18 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, Beldfoil® shielded, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.25 mm (0.0098 in) | 1.72 mm (0.0677 in) | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Turqouise |
| Outer Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.2 mm (0.047 in) | 9.4 mm (0.37 in) | Yes |
