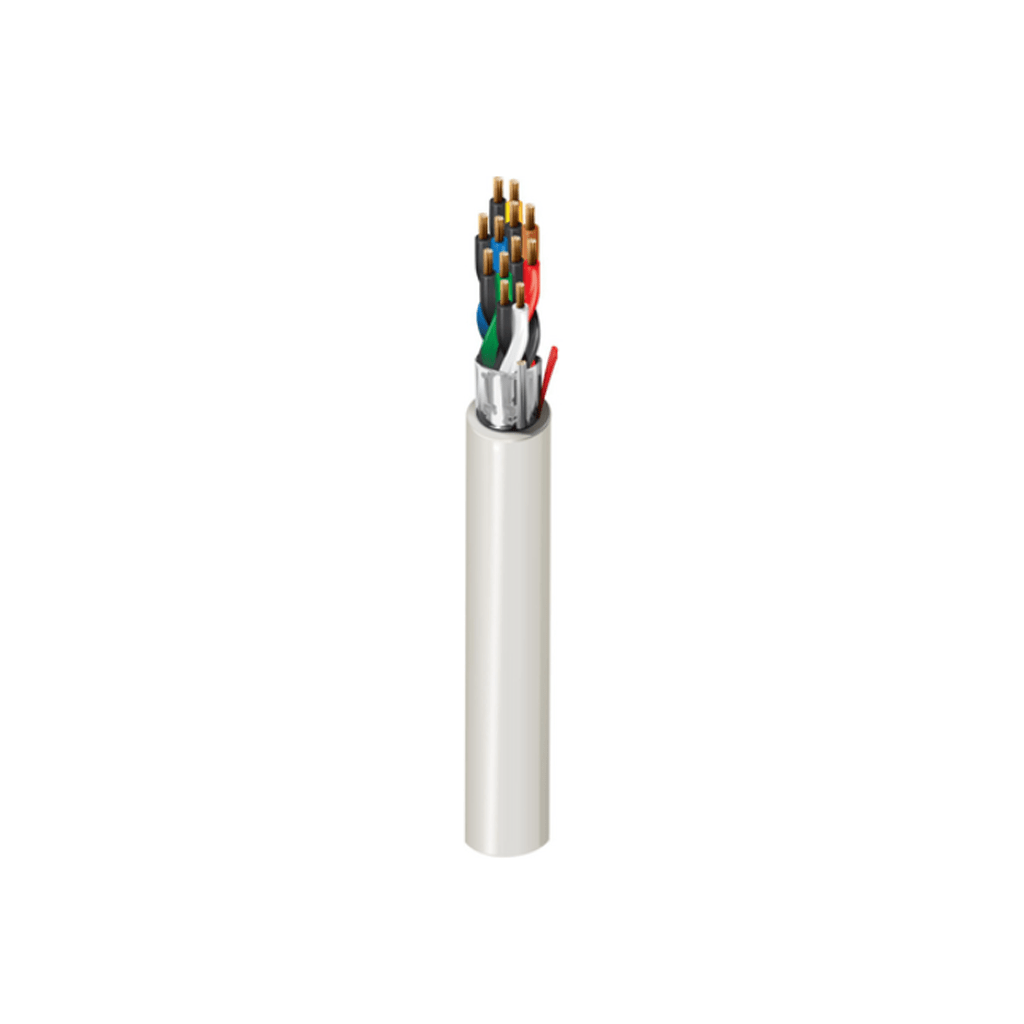

BELDEN 4345FE
Security & Sound, 6 Pairs 18 AWG BC, LSZH, Shielded, Eca
Product Description
Security & Commercial Audio Cable, 6-18 AWG stranded bare copper pairs with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Eca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.2 mm (0.0079 in) | 1.5 mm (0.059 in) | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.4 mm (0.016 in) | 8.85 mm (0.348 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C to +70°C | |
