BELDEN 4400UE
Security & Sound, 2 Conductor 20 AWG BC, LSZH
Product Description

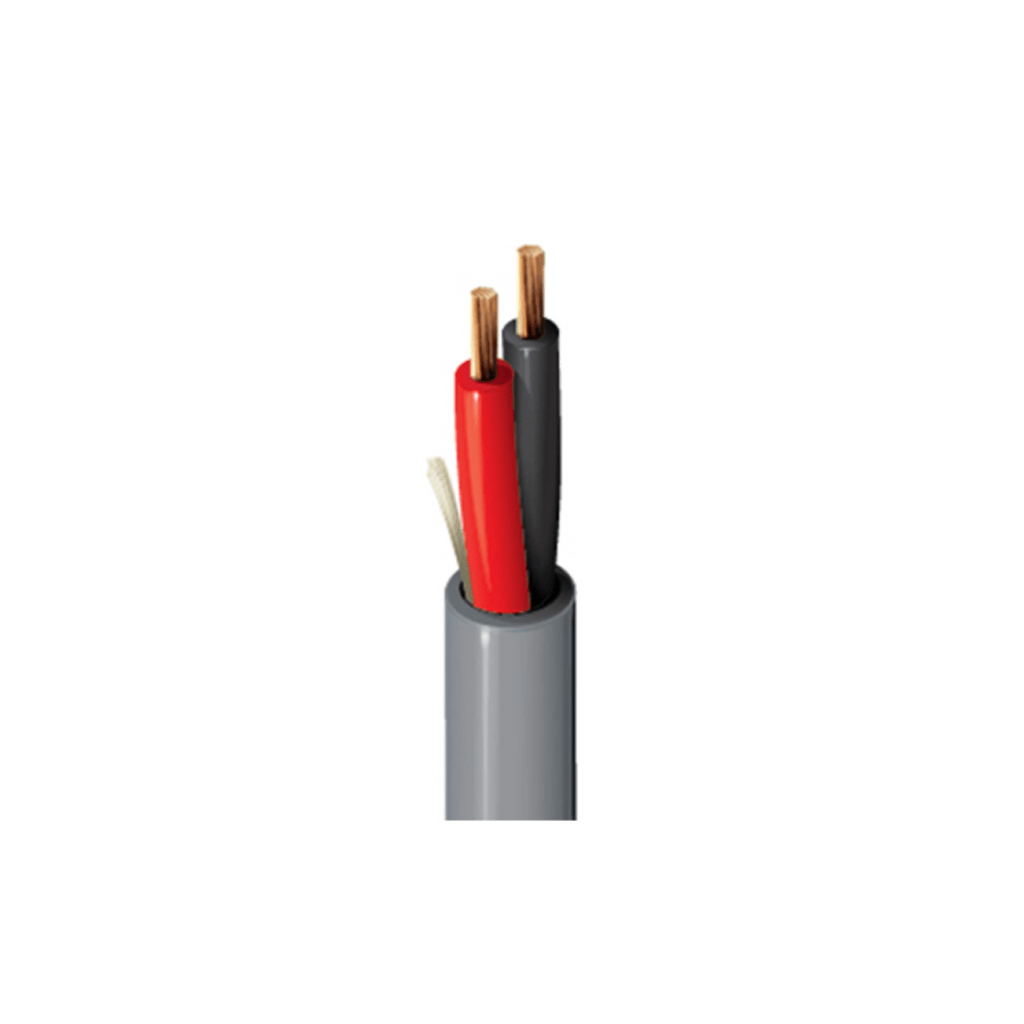

Security & Commercial Audio Cable, 2-20 AWG stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.2 mm (0.0079 in) | 1.27 mm (0.0500 in) | Black & Red |
| Outer Shield | |||
| Material | |||
| No Shield | |||
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.4 mm (0.016 in) | 3.6 mm (0.14 in) | Yes |
| Temperature | |||
| Storage | |||
| -30°C to +70°C | |||
