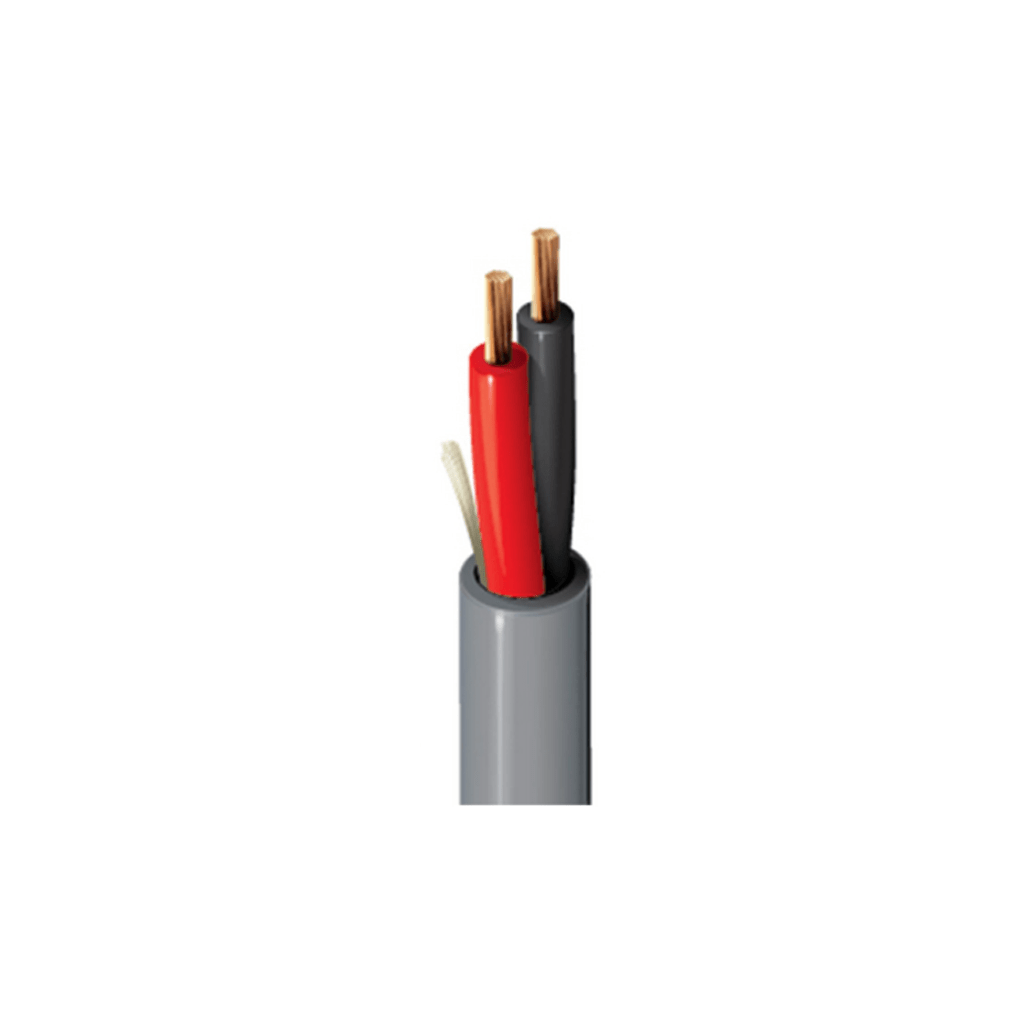

BELDEN 4400ULW
Security & Sound, 2 Conductor 20 AWG BC, LSZH, Cca
Product Description
Security & Commercial Audio Cable, 2-20 AWG stranded bare copper conductors with Low Smoke Zero Halogen insulation, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.3 mm (0.012 in) | 1.60 mm (0.0630 in) | |
| Outer Shield | |||
| Material | |||
| No Shield | |||
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.1 mm (0.043 in) | 5.4 mm (0.21 in) | Yes |
| Temperature | |||
| Storage | |||
| -30°C to +70°C | |||
