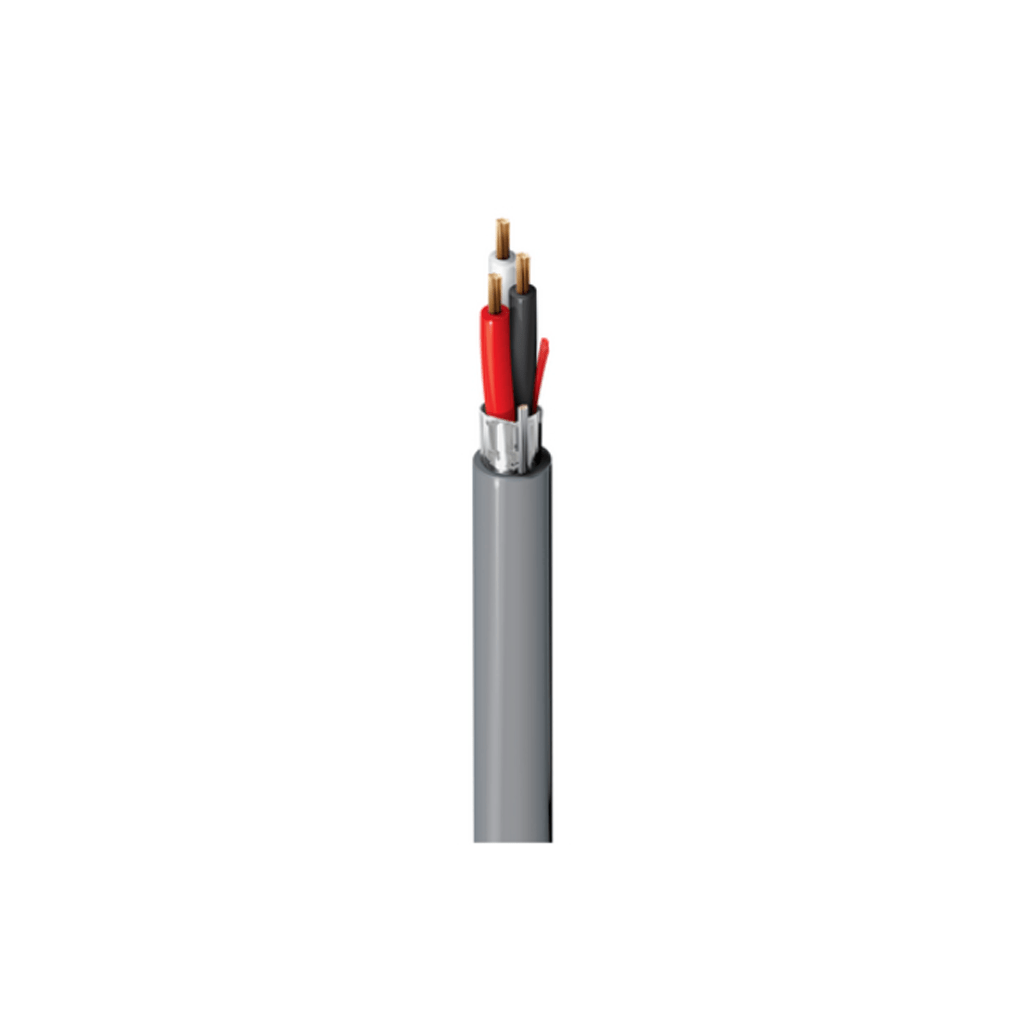

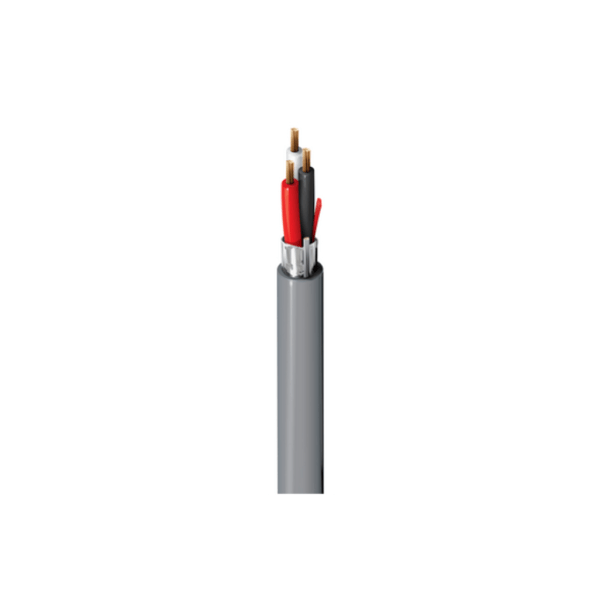

BELDEN 4401FLW
Security & Sound, 3 Conductor 20 AWG BC, LSZH, Cca
Product Description
Security & Commercial Audio Cable, 3-20 AWG stranded bare copper conductors with LSZH insulation, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.32 mm (0.013 in) | 1.60 mm (0.0630 in) | |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.2 mm (0.047 in) | 6.0 mm (0.24 in) | Yes |
| Temperature | |||
| Operating | Installation | Storage | |
| -20°C To +70°C | -20°C To +70°C | -30°C To +70°C | |
