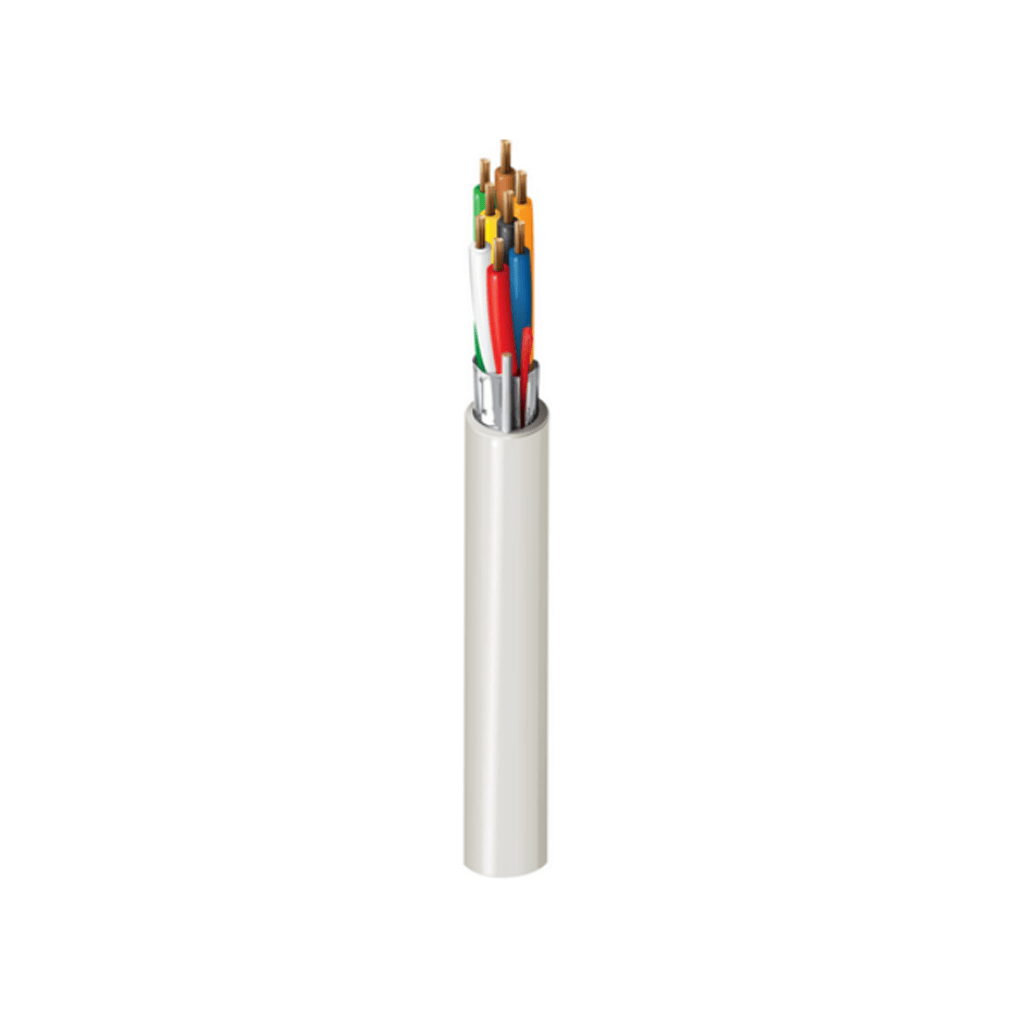

BELDEN 4506FLW
Security & Sound, 8 Conductor 22 AWG BC, LSZH, Shielded, Cca
Product Description
Security & Commercial Audio Cable, 8-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield, LSZH jacket with ripcord, CPR Cca
Technical Specifications
| Insulation | |||||
| Type | Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness | |
| Insulation | LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.45 mm | 0.05 mm | 0.35 mm | |
| Outer Shield | |||||
| Type | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material |
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | 9 µm | TC – Tinned Copper |
| Temperature Range | |||||
| Installation Temperature Range | -20°C To +70°C | ||||
| Storage Temperature Range | -30°C To +70°C | ||||
| Operating Temperature Range | -20°C To +70°C | ||||
