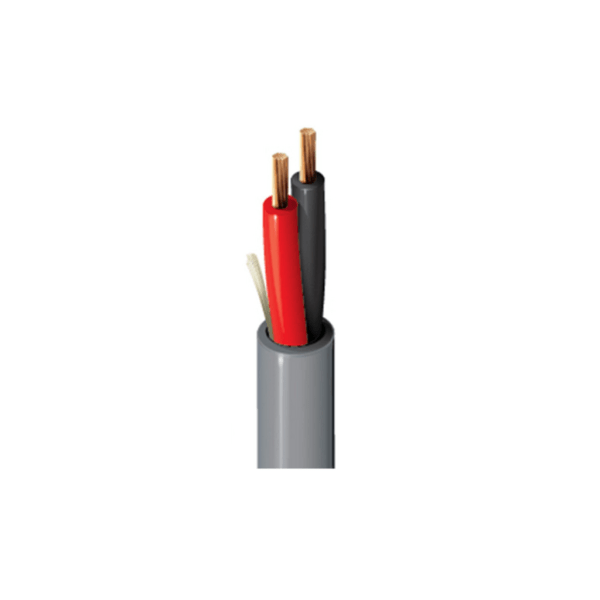

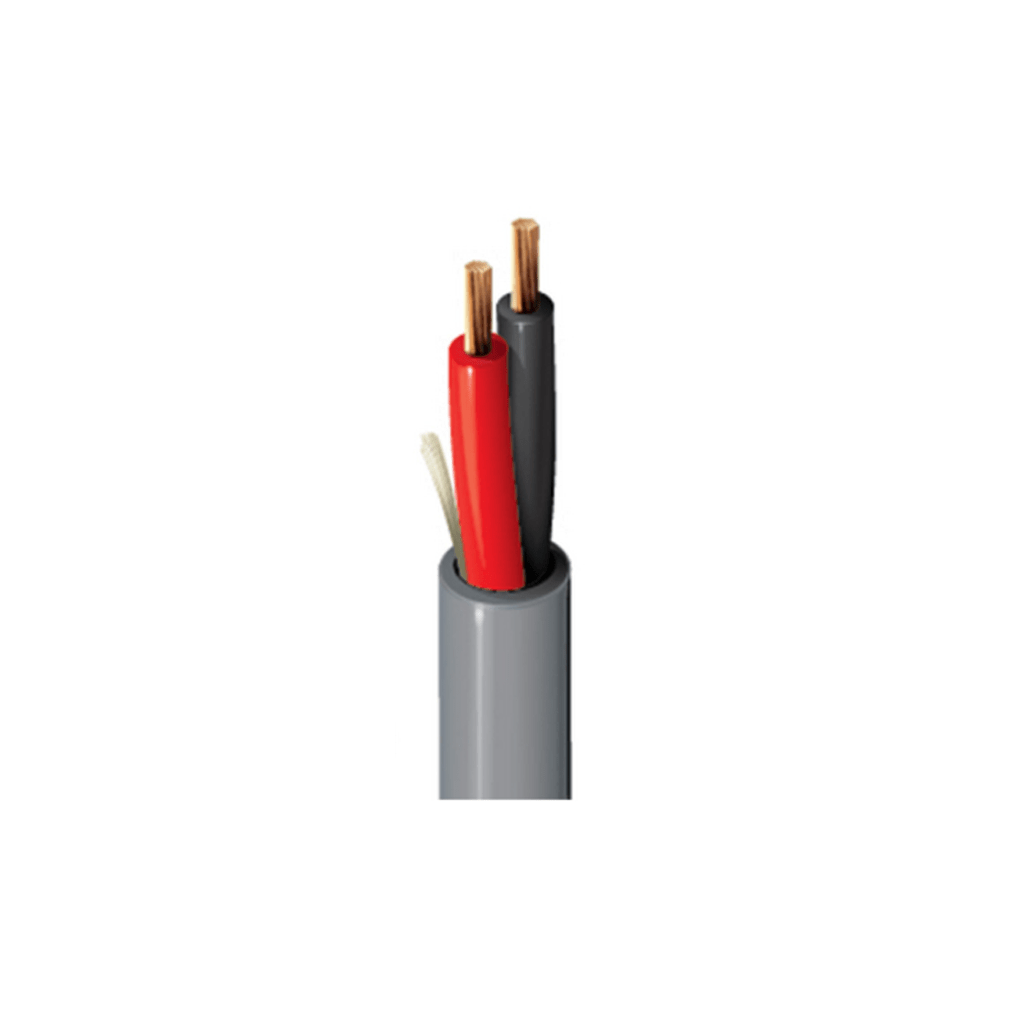

BELDEN 4T00UP
Security & Sound, 2 Conductor 10 AWG high str BC, LSZH
Product Description
Security & Commercial Audio Cable, 2-10 AWG high stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord
Technical Specifications
| Insulation | |||
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
| Insulation | PP – Polypropylene | 3.90 mm | 0.05 mm |
| Outer Jacket | |||
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 9.1 mm | 0.6 mm | Yes |
| Temperature Range | |||
| Installation Temperature Range | -20°C To +70°C | ||
| Storage Temperature Range | -30°C To +70°C | ||
| Operating Temperature Range | -20°C To +70°C | ||
| Other Temp Range | -20-+70 °C | ||
