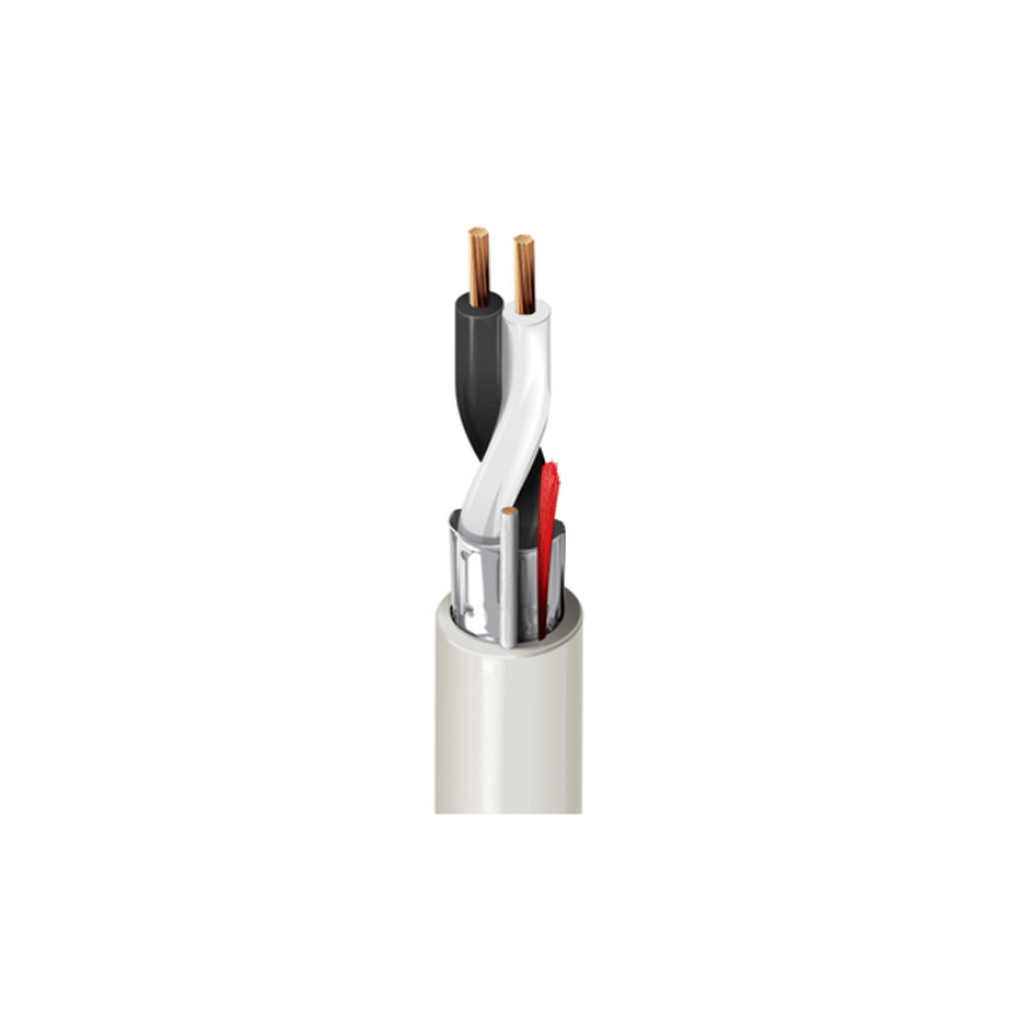

BELDEN 5000FE
Security & Sound, 2 Conductor 12 AWG, BC, O/A Foil, CL3R-FPLR
Product Description
Security & Commercial Audio Cable, Riser-CL3R-FPLR, 2-12 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.011 in (0.28 mm) | 0.113 in (2.87 mm) | Black, White |
| Inner Shield | ||||
| Drainwire Type | ||||
| 20 AWG (Solid) TC | ||||
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Tape | Bi-Laminate (Alum+Poly) | 100% | ||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.264 in (6.71 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
