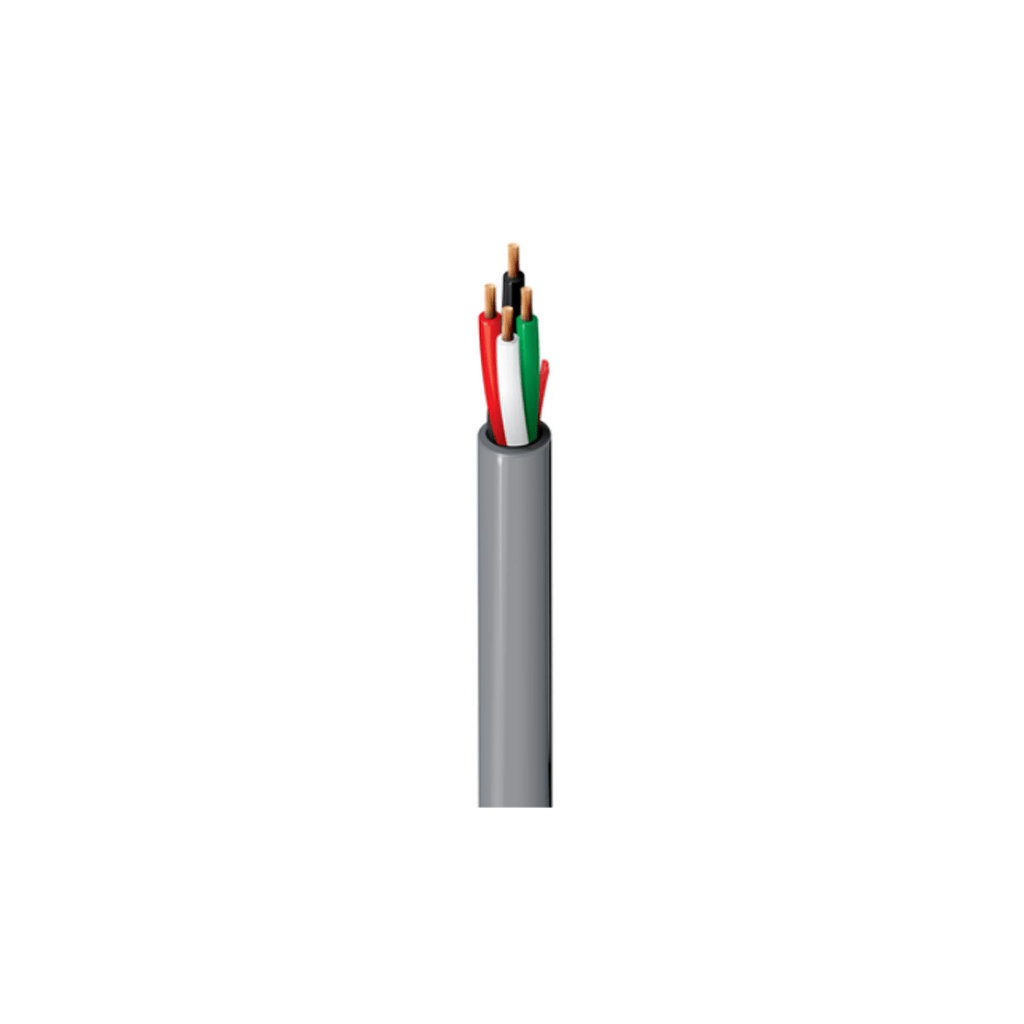

BELDEN 5002UP
Audio Cable, 4 Conductor 12 AWG, BC, CL3
Product Description
Audio Cable, 4 Conductor 12 AWG, highly flexible stranded (65×30) bare copper conductors with PVC insulation, CL3, PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.023 in (0.58 mm) | 0.138 in (3.51 mm) | Black, White, Red, Green |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.022 in (0.56 mm) | 0.377 in (9.58 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
