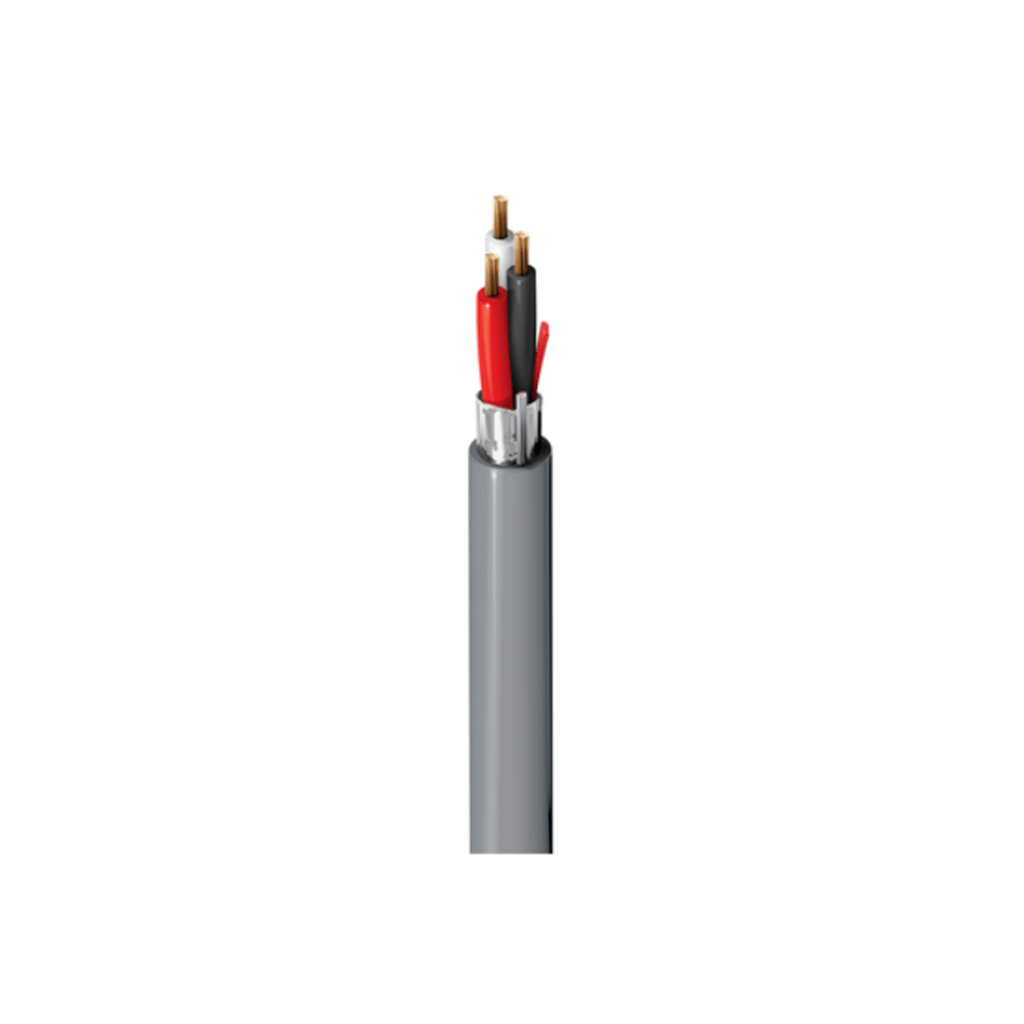

BELDEN 5101FE
Security & Sound, 3 Conductor 14 AWG BC, CL3R
Product Description
Security & Commercial Audio Cable, 3 Conductor 14 AWG stranded (19×27) bare copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.011 in (0.28 mm) | 0.092 in (2.3 mm) | Black, White, Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.245 in (6.22 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C To +75°C | |||
