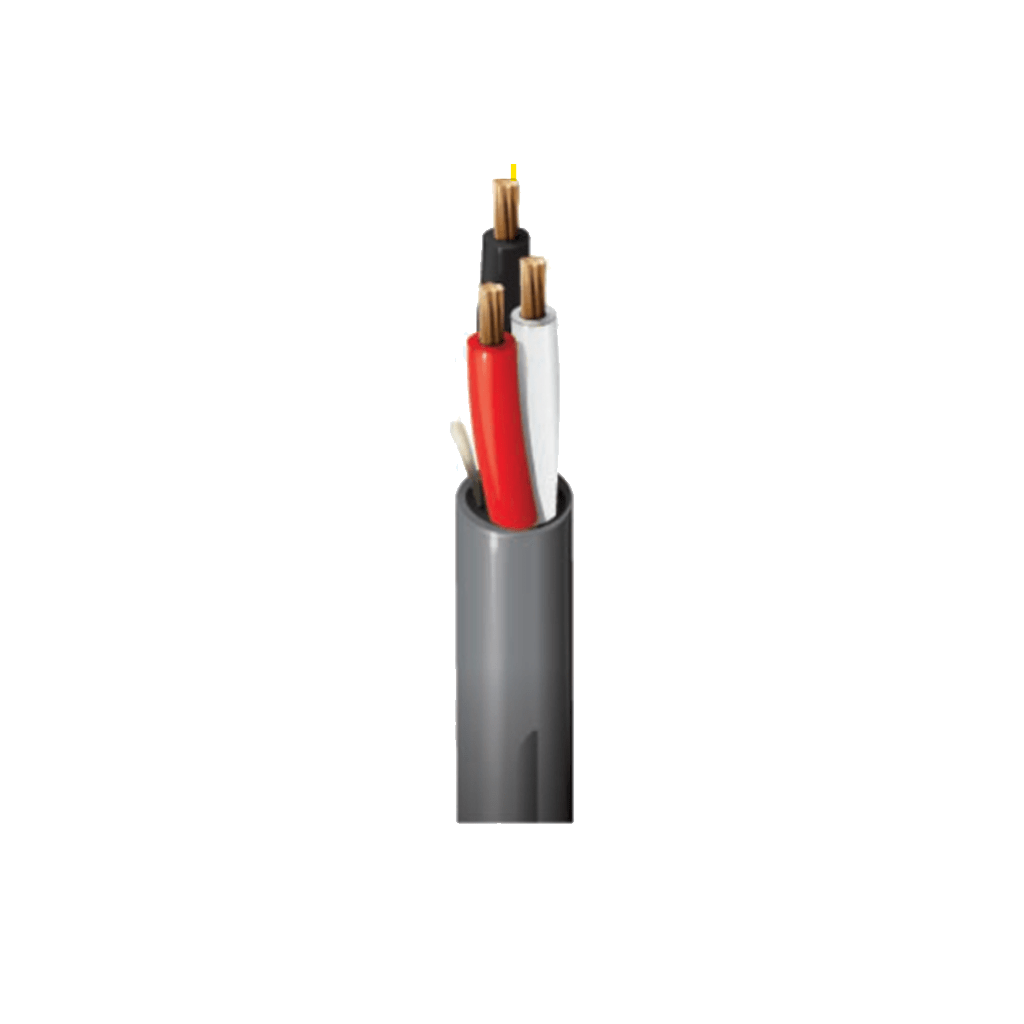

BELDEN 5101UE
Security & Sound, 3 Conductor 14 AWG BC, CL3R
Product Description
Security & Commercial Audio Cable, Riser-CL3R, 3-14 AWG stranded (19×27) bare copper conductors with polypropylene insulation, Riser, PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.011 in (0.28 mm) | 0.092 in (2.3 mm) | Black, White, Red |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.232 in (5.89 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
