BELDEN 5200UH
Security & Sound, 2 Conductor 16 AWG, TC, Riser
Product Description

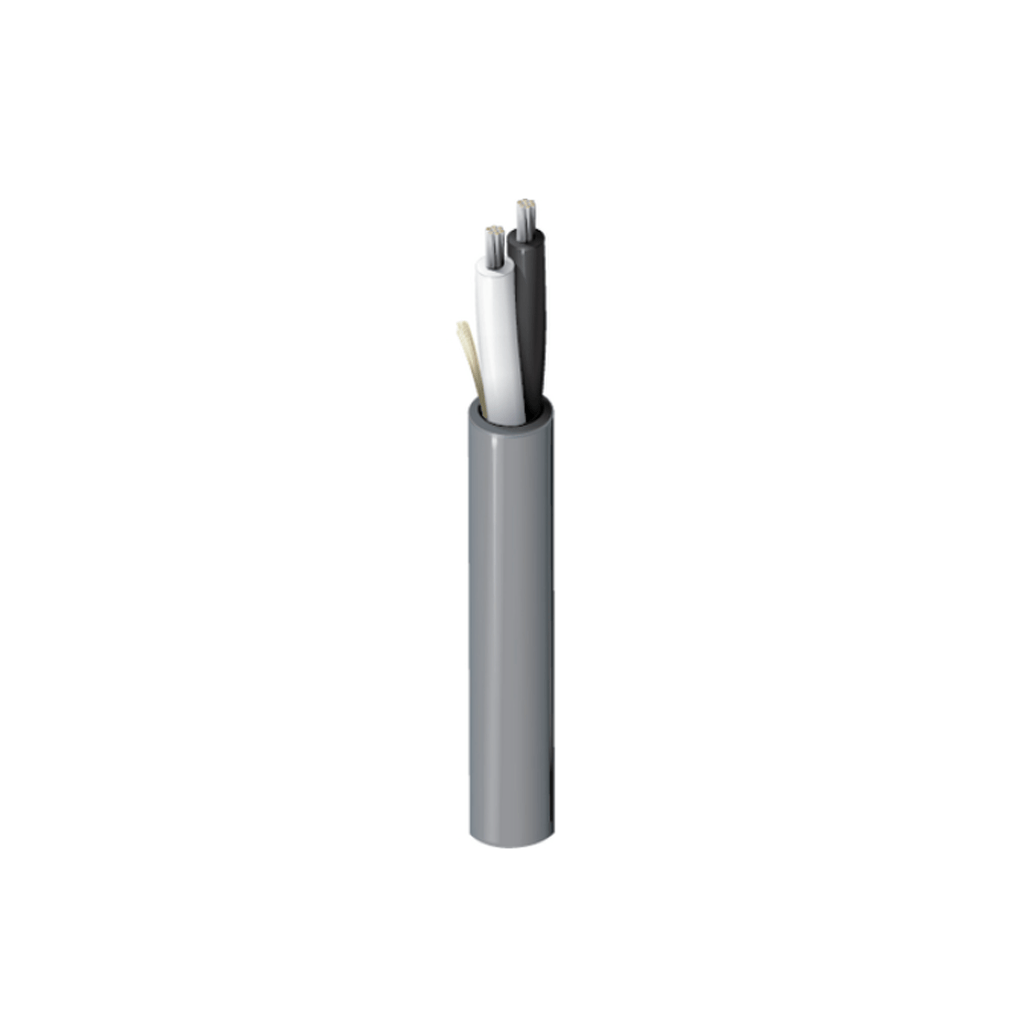

Security & Commercial Audio Cable, 2 Conductor 16 AWG stranded (19×29) tinned copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.075 in (1.9 mm) | Black, Red |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.184 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C To +75°C | |||
