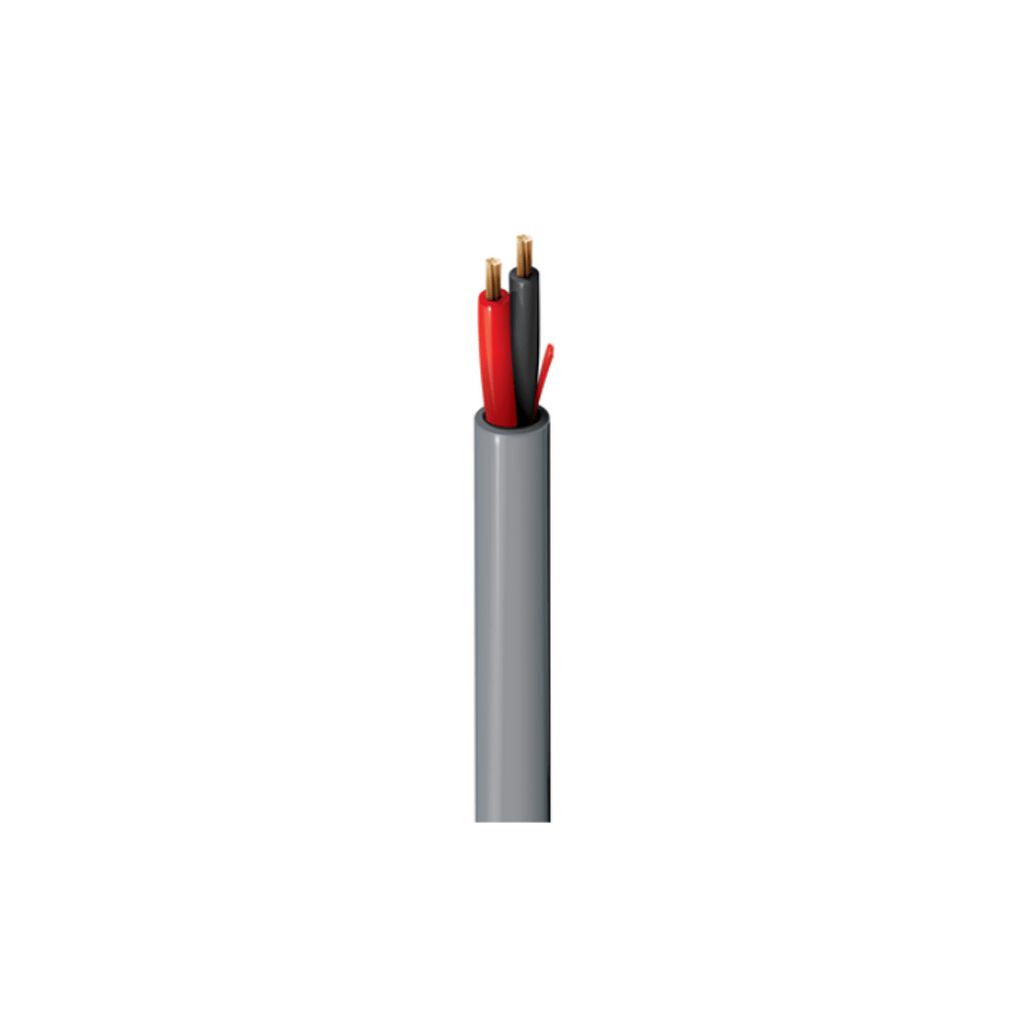

BELDEN 5300UE
Security & Sound, 2 Conductor 18 AWG, BC, CMR
Product Description
Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PO – Polyolefin | 0.009 in (0.23 mm) | 0.062 in (1.6 mm) | Black, Red |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.158 in (4.01 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
