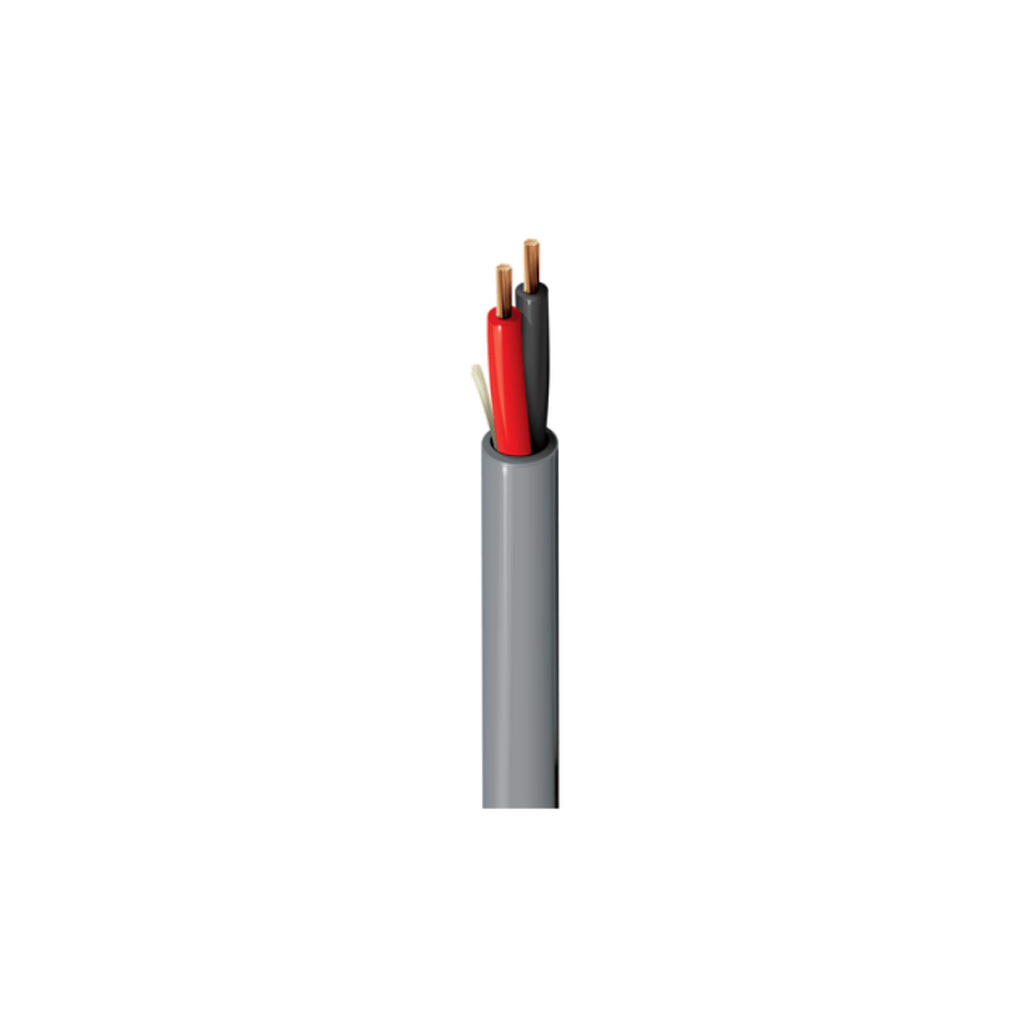

BELDEN 5500UE
Security & Sound, 2 Conductor 22 AWG, BC, CMR
Product Description
Security & Commercial Audio Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.045 in (1.1 mm) | Black, Red |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.123 in (3.12 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
