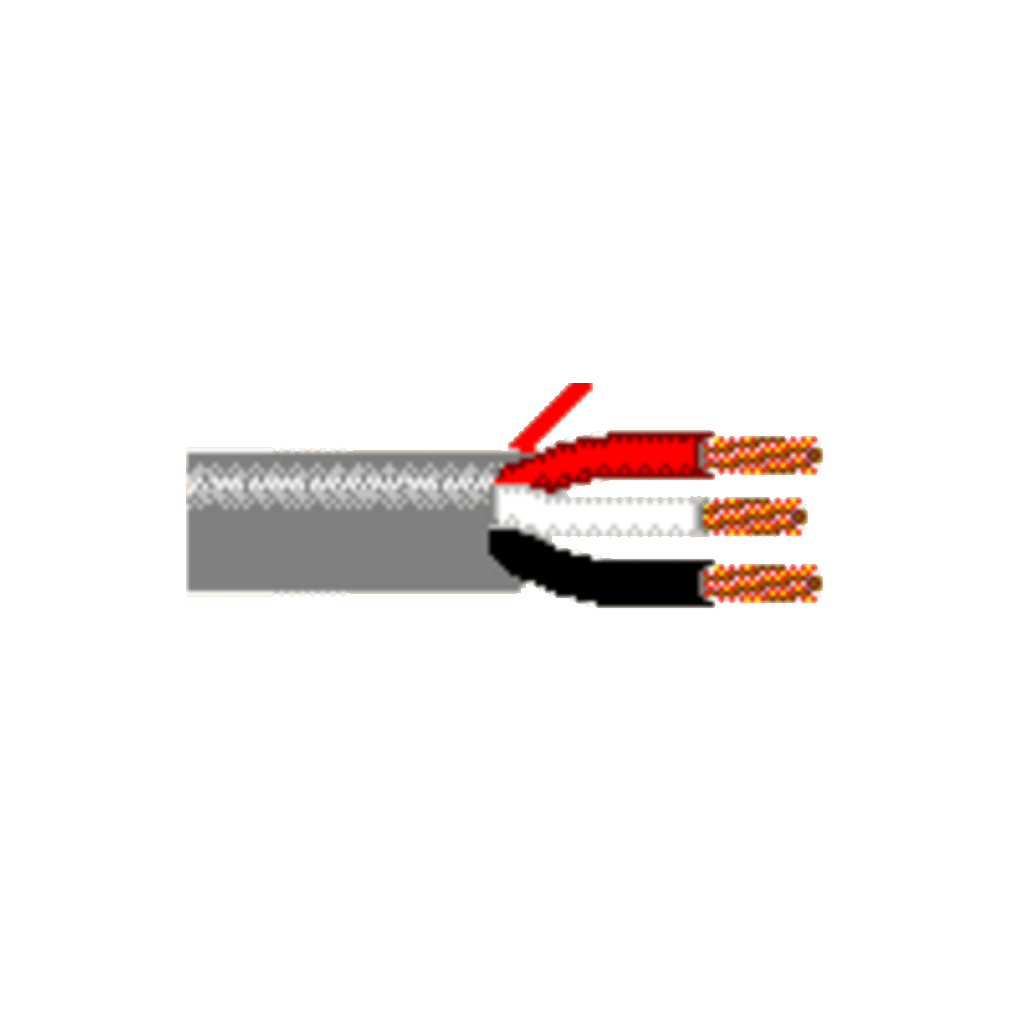

BELDEN 5501UE
Security & Sound, 3 Conductor 22 AWG BC, Riser
Product Description
Security & Commercial Audio Cable, 3 Conductor 22 AWG stranded (7×30) bare copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.008 in (0.20 mm) | 0.045 in (1.1 mm) | Black, Red, White |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.13 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
