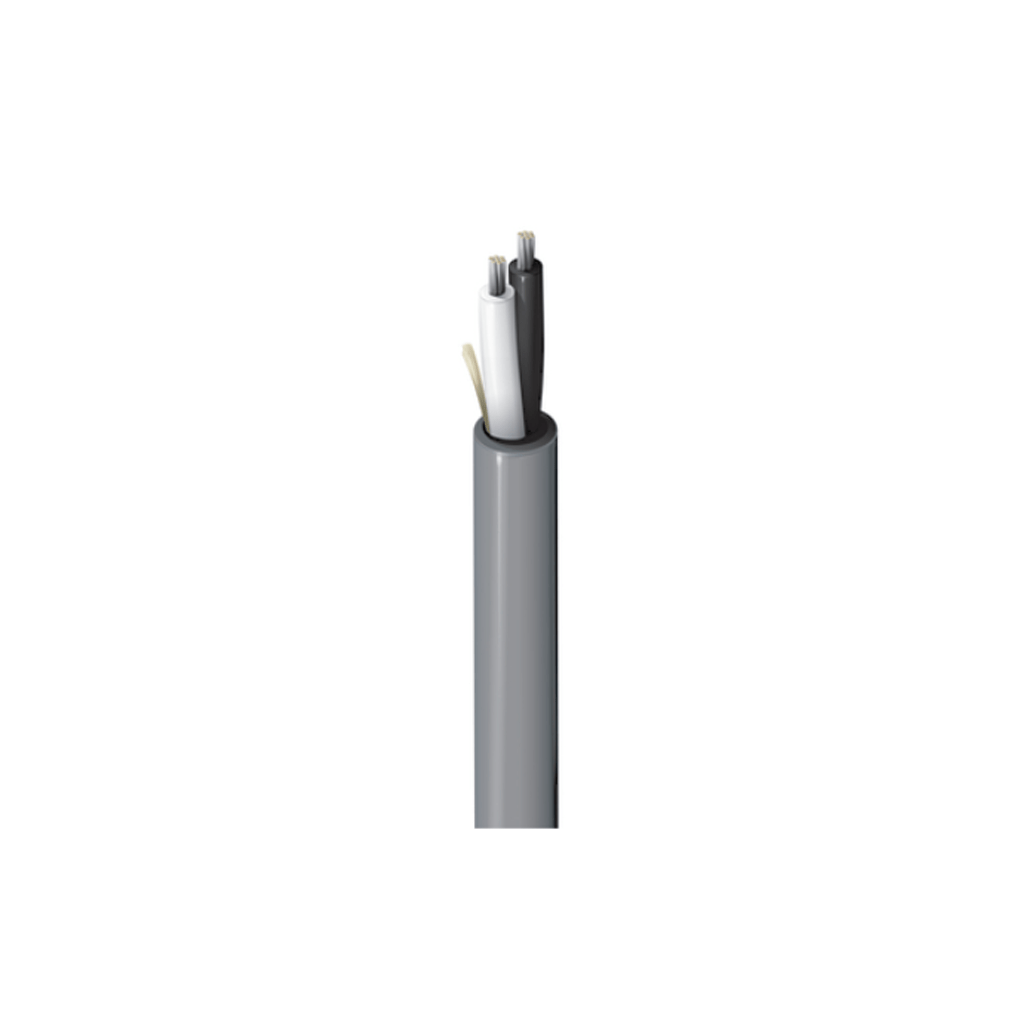

BELDEN 5T00UP
Audio Cable, 2 Conductor 10 AWG, BC, Unshielded, CL2
Product Description
Audio Cable, Rated-CL2, 2-10 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.152 in (3.86 mm) | Black, White |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.026 in (0.66 mm) | 0.356 in (9.04 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C to +75°C | |||
