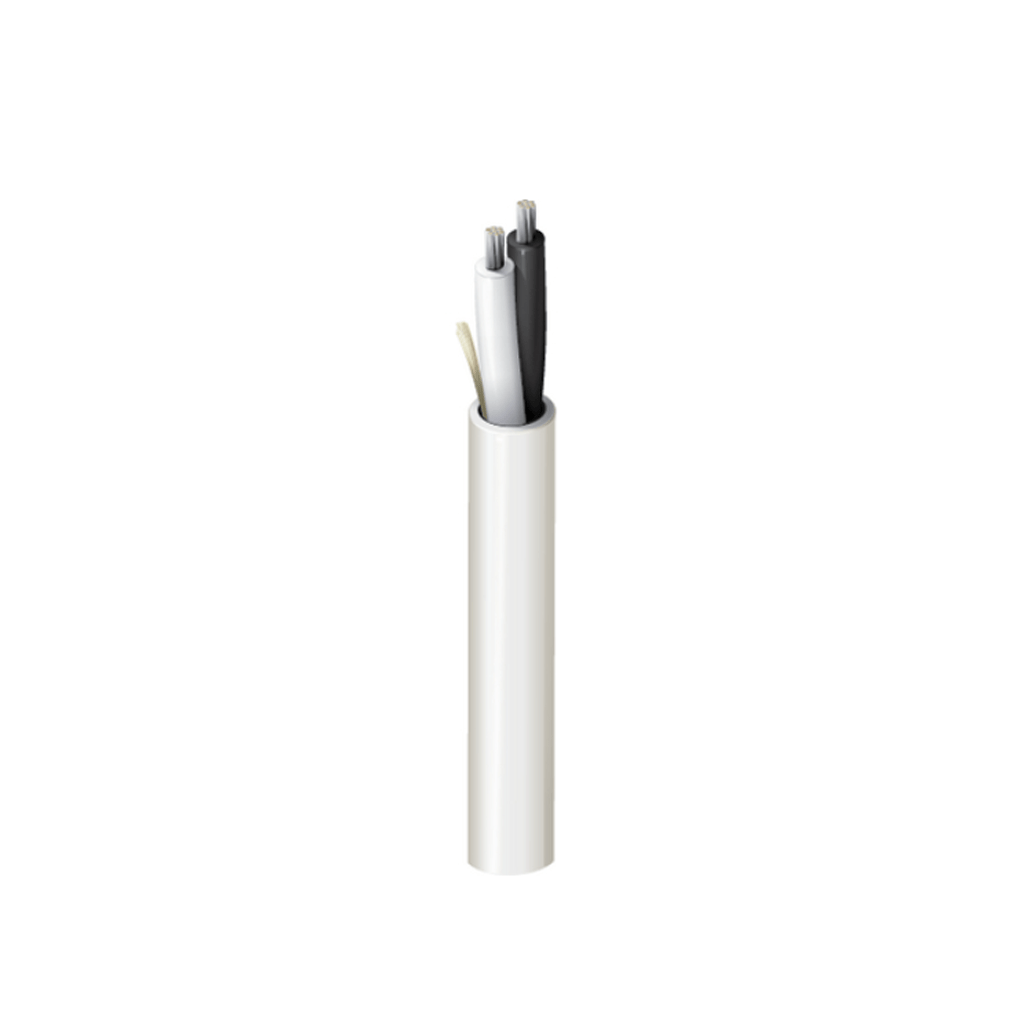

BELDEN 6100UH
Security & Sound, 2 Conductor 14 AWG TC, Plenum
Product Description
Security & Commercial Audio Cable, 2 Conductor 14 AWG stranded (19×27) tinned copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.011 in (0.28 mm) | 0.098 in (2.5 mm) | Black & White |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.226 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | Installation | ||
| 75°C | -20°C To +75°C | 0°C To +75 | ||
