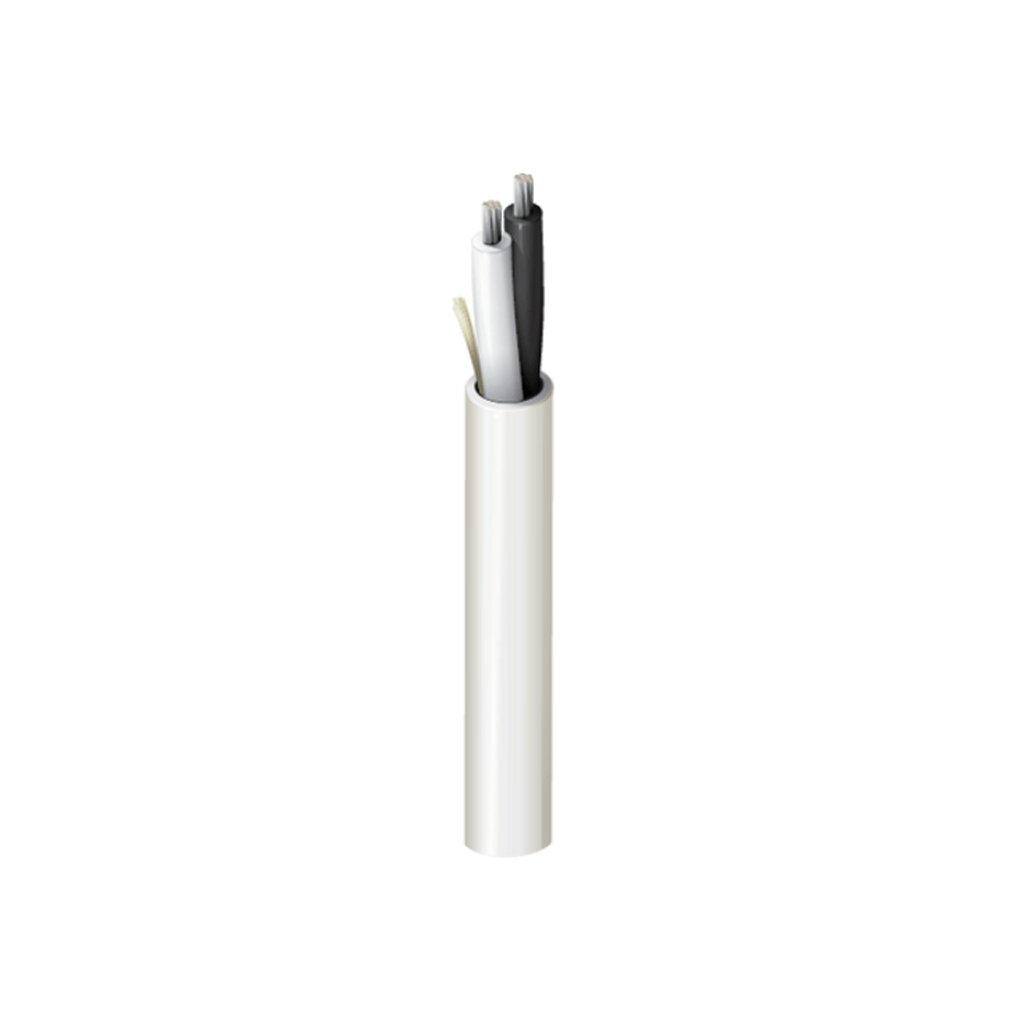

BELDEN 6200UH
Security & Sound, 2 Conductor 16 AWG, TC, Plenum
Product Description
Security & Commercial Audio Cable, 2 Conductor 16 AWG stranded (19×29) tinned copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.009 in (0.23 mm) | 0.077 in (2.0 mm) | Black And White |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.184 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
