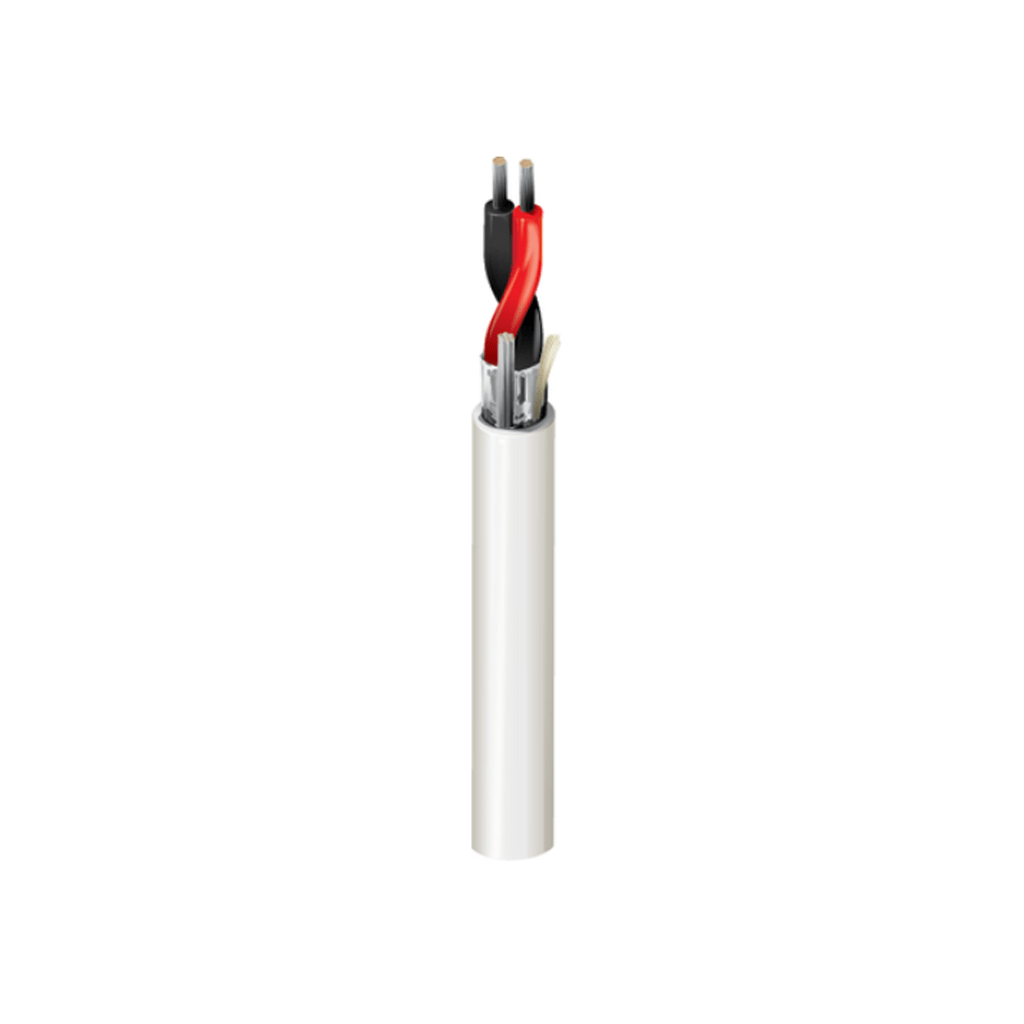

BELDEN 6300FH
Security & Sound, 2 Conductor 18 AWG, TC, Shielded, Plenum
Product Description
Security & Commercial Audio Cable, 2 Conductor 18 AWG stranded (7×26) tinned copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.009 in (0.23 mm) | 0.064 in (1.6 mm) | Black and Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (Solid) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.162 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
