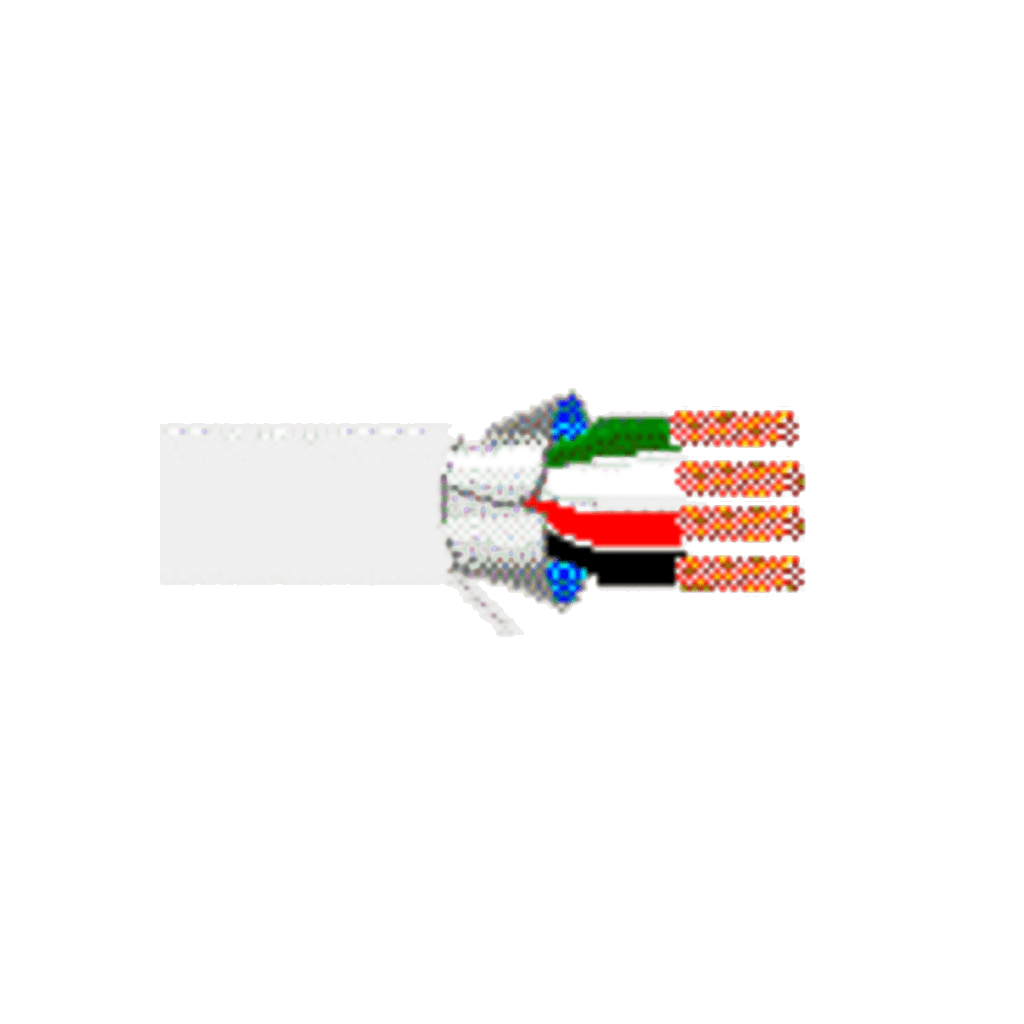

BELDEN 6302FC
Security & Sound, 4 Conductor 18 AWG BC, Shielded, Plenum
Product Description
Security, Pro Audio & Intercom Cable, 4 Conductor 18 AWG stranded (7×26) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | FEP – Fluorinated Ethylene Propylene | 0.006 in (0.15 mm) | 0.059 in (1.5 mm) | Black, Red, White, Green |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7×28) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.176 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
