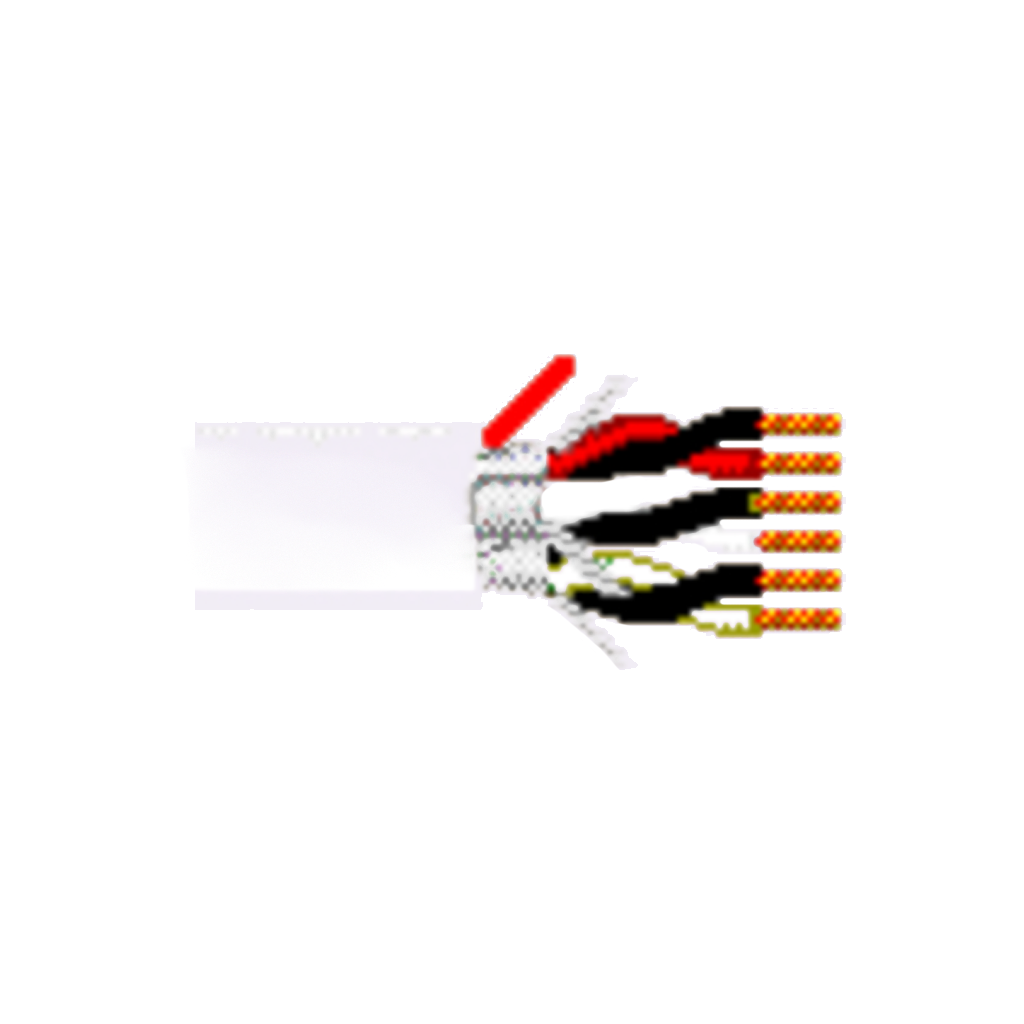

BELDEN 6342PC
Security & Sound, 3 Pair 18 AWG, BC, Individually Shielded, CMP
Product Description
Security, Pro Audio & Intercom Cable, Plenum-CMP, 3-18 AWG stranded bare copper pairs with FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | FEP – Fluorinated Ethylene Propylene | 0.01 in (0.25 mm) | 0.066 in (1.7 mm) | Black & Red, Black & White, Black & Green |
| Inner Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC | |
| Outer Shield | ||||
| Material | ||||
| No Shield | ||||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.0165 in (0.419 mm) | 0.3 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | 0°C to +75°C | |||
