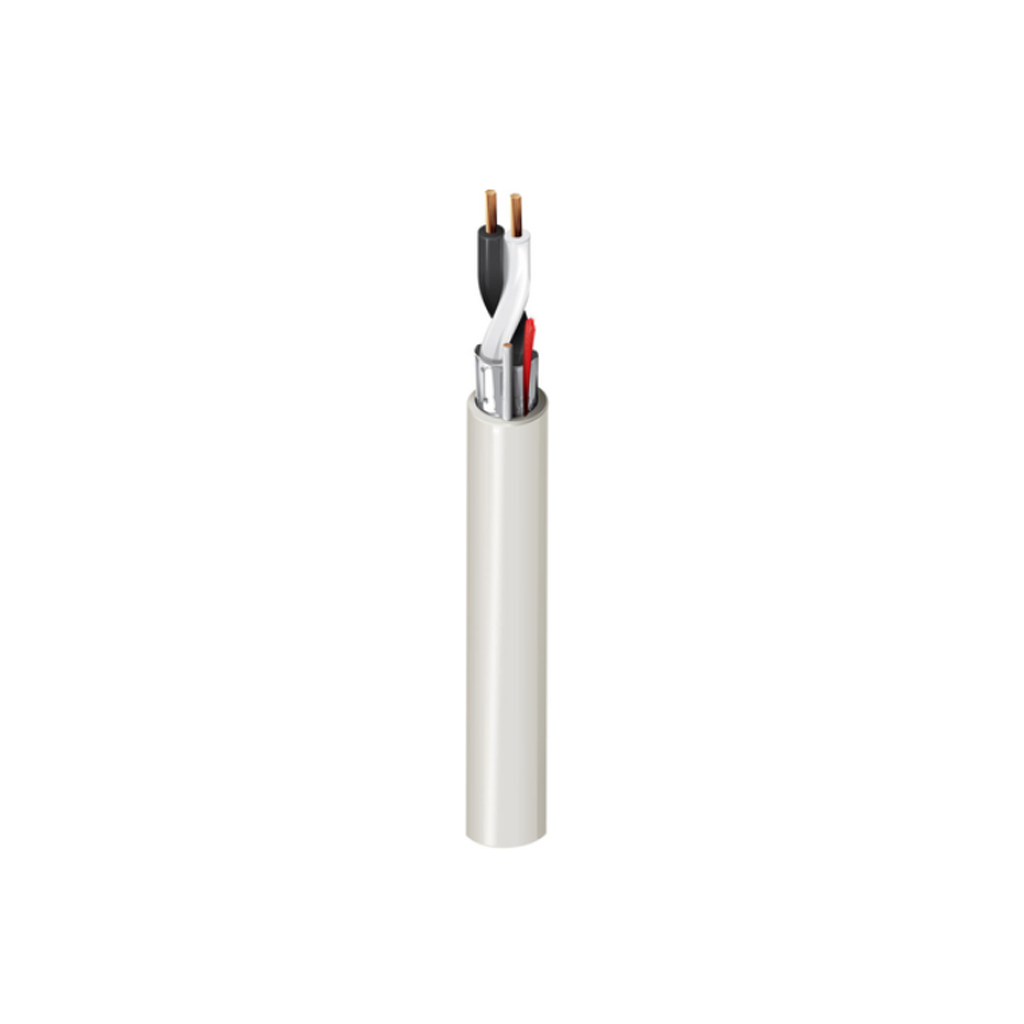

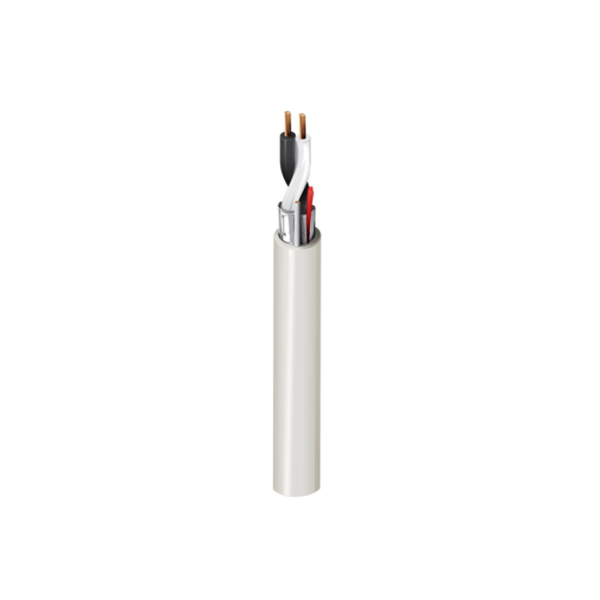

BELDEN 6400FC
Security & Sound, 2 Conductor 20 AWG BC, Shielded, Plenum
Product Description
Security & Sound Cable, 2 Conductor 20 AWG stranded (7×28) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | FEP – Fluorinated Ethylene Propylene | 0.006 in (0.15 mm) | 0.048 in (1.2 mm) | Black, Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.0165 in (0.419 mm) | 0.133 in | Yes | |
| Temperature | ||||
| UL Temperature | Operating | |||
| 75°C | -20°C To +75°C | |||
