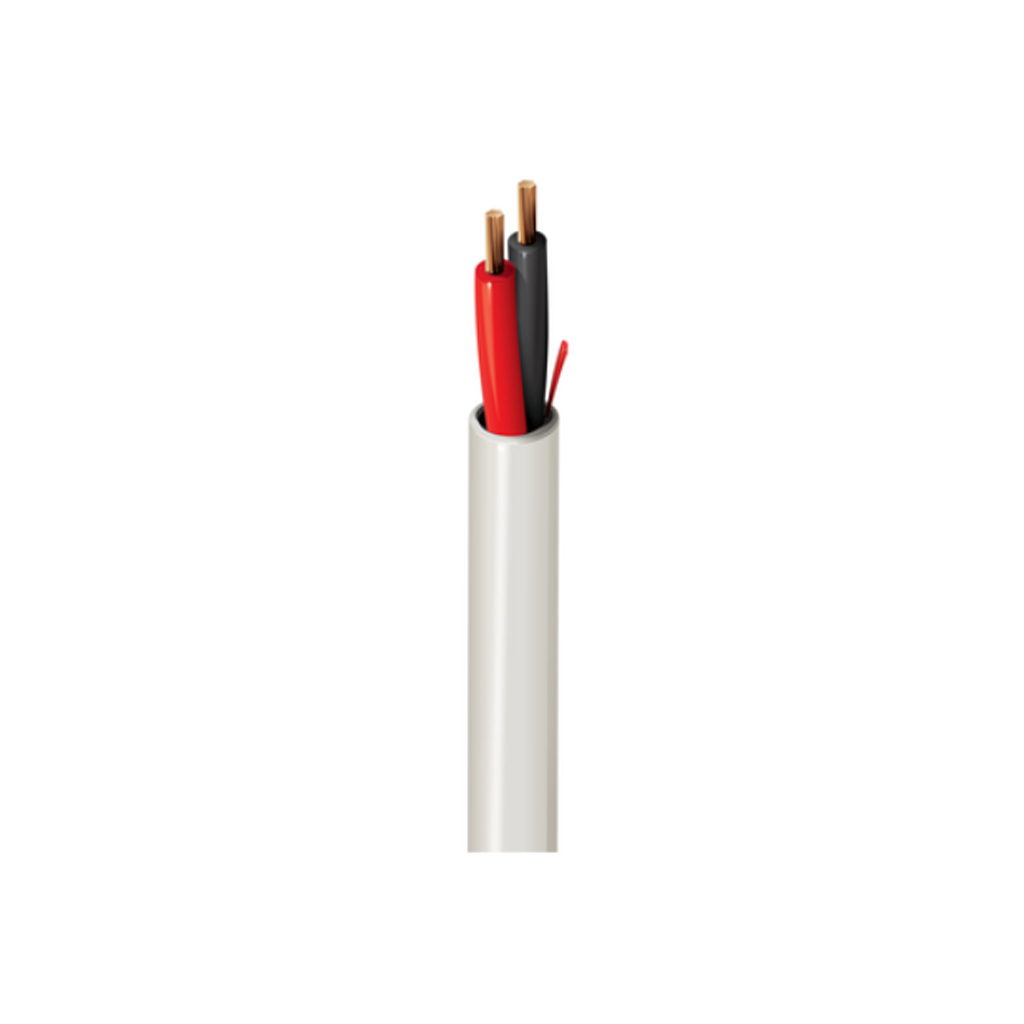

BELDEN 6500UE
Security & Sound, 2 Conductor 22 AWG, BC, CMP
Product Description
Security & Commercial Audio Cable, Plenum-CMP 2-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.008 in (0.20 mm) | 0.045 in (1.1 mm) | Black, Red |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | Ripcord | |
| PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.120 in (3.05 mm) | Yes | |
| Temperature | ||||
| UL Temperature | Operating | Installation | ||
| 75°C | 0°C to +75°C | 0°C To +75°C | ||
