70039
AUDIO ANALOG 10 PAIR, 26AWG, LSZH
70039 屬Belden線材、UPS 及機櫃產品。傑成系統有限公司（香港防盜）為Belden產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
規格
Conductor
Insulation
| Diameter +/- Tolerance |
| 0.03 mm |
Color Chart
Inner Shield
| Drainwire Material |
Drainwire AWG |
| Stranded tinned copper |
16 |
Inner Jacket
| Diameter +/- Tolerance |
| 0.1 mm |
| Inner Jacket Table Notes |
Elements are numbered for identification |
Outer Shield
| Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
| TC – Tinned Copper |
26 |
Stranded |
Outer Jacket
| Diameter +/- Tolerance |
| 0.1 mm |

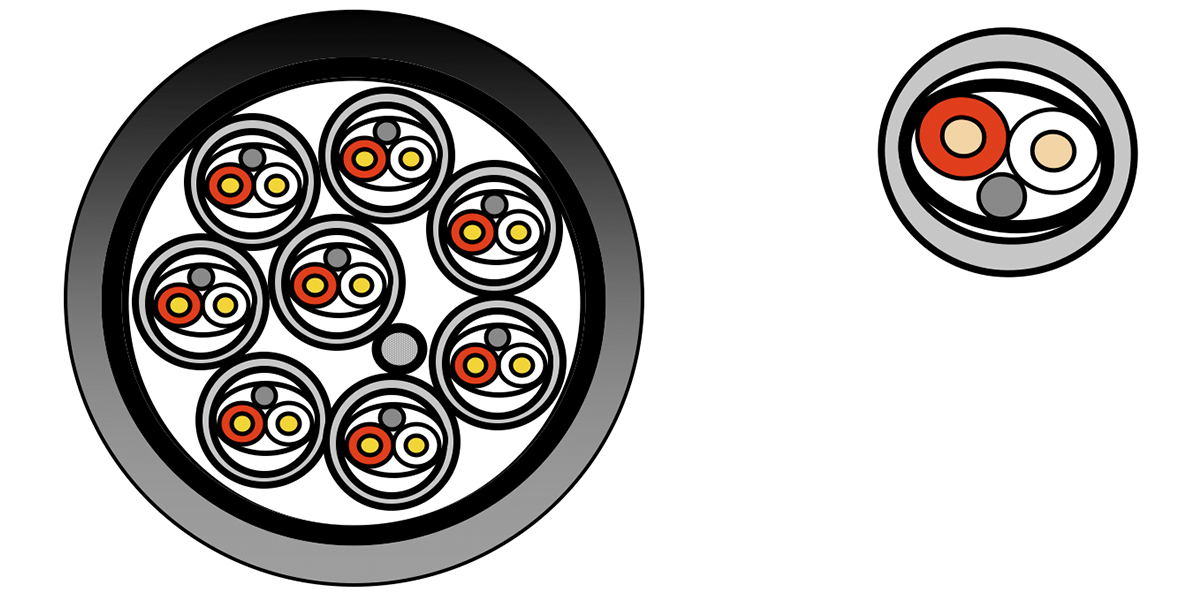

Cabling
| Description |
| 10 pairs + drainwire stranded tinnend copper (AWG26)(7×0.16mm) + Filler |
Capacitance
| Nom. Capacitance Conductor to Conductor |
| 90 pF/m |
Delay
| Nominal Velocity of Propagation (VP) [%] |
| 66% |
| Other Temp Range |
-30-+70 °C |
| Environmental Space |
Indoor |
| IEC Flammability |
IEC 60332-1-2 |
| LOI of Jacket |
34 % |
| IEC 60754-1 – Halogen Amount |
Zero |
| Update and Revision |
Revision Number: 0.220 Revision Date: 10-07-2025 |
| Update and Revision |
Revision Number: 0.220 Revision Date: 10-07-2025 |
