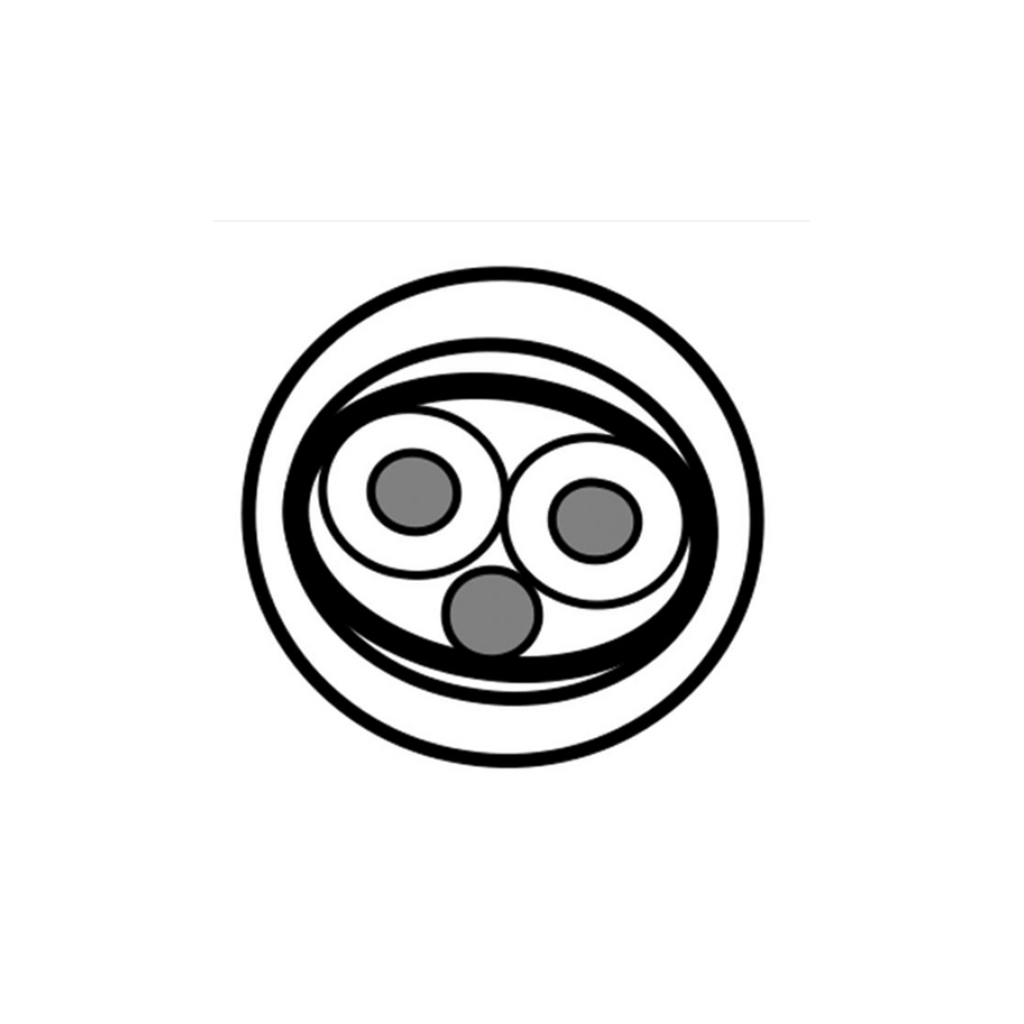

BELDEN 70049LW
1 PAIR AES/EBU, 24AWG, ISTP, LSZH
Product Description
DIGITAL AUDIO 1 PAIR AES/EBU, 24AWG/0.22mm², ISTP, LSZH
Technical Specifications
| Insulation | ||||||
| Material | Nominal Diameter | Diameter +/- Tolerance | ||||
| Outer Shield | ||||||
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position |
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC – Tinned Copper | 24 | 7×0.20 mm | Under shielding foil |
| Outer Jacket | ||||||
| Material | Nominal Diameter | Diameter +/- Tolerance | ||||
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 6.9 mm | 0.3 mm | ||||
