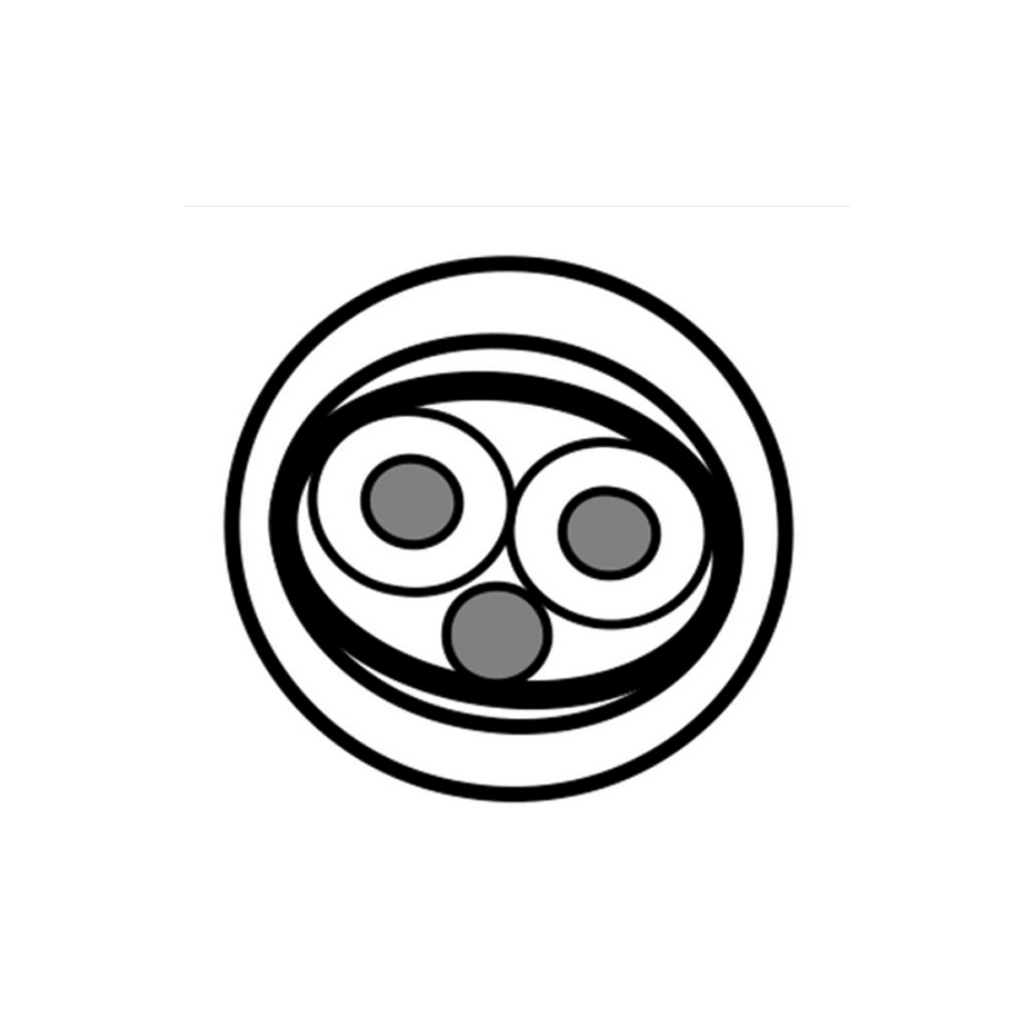

BELDEN 70050LW
1 PAIR AES/EBU, 22AWG, ISTP, LSZH-C
Product Description
DIGITAL AUDIO 1 PAIR AES/EBU, 22AWG/0.34mm², ISTP, LSZH-C
Technical Specifications
| Insulation | ||||||
| Material | Nominal Diameter | Diameter +/- Tolerance | ||||
| PE – Polyethylene (Foam) | 2.1 mm | 0.05 mm | ||||
| Outer Shield | ||||||
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position |
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC – Tinned Copper | 22 | 7×0.25 mm | Under shielding foil |
| Outer Jacket | ||||||
| Material | Nominal Diameter | Diameter +/- Tolerance | ||||
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 7.4 mm | 0.1 mm | ||||
