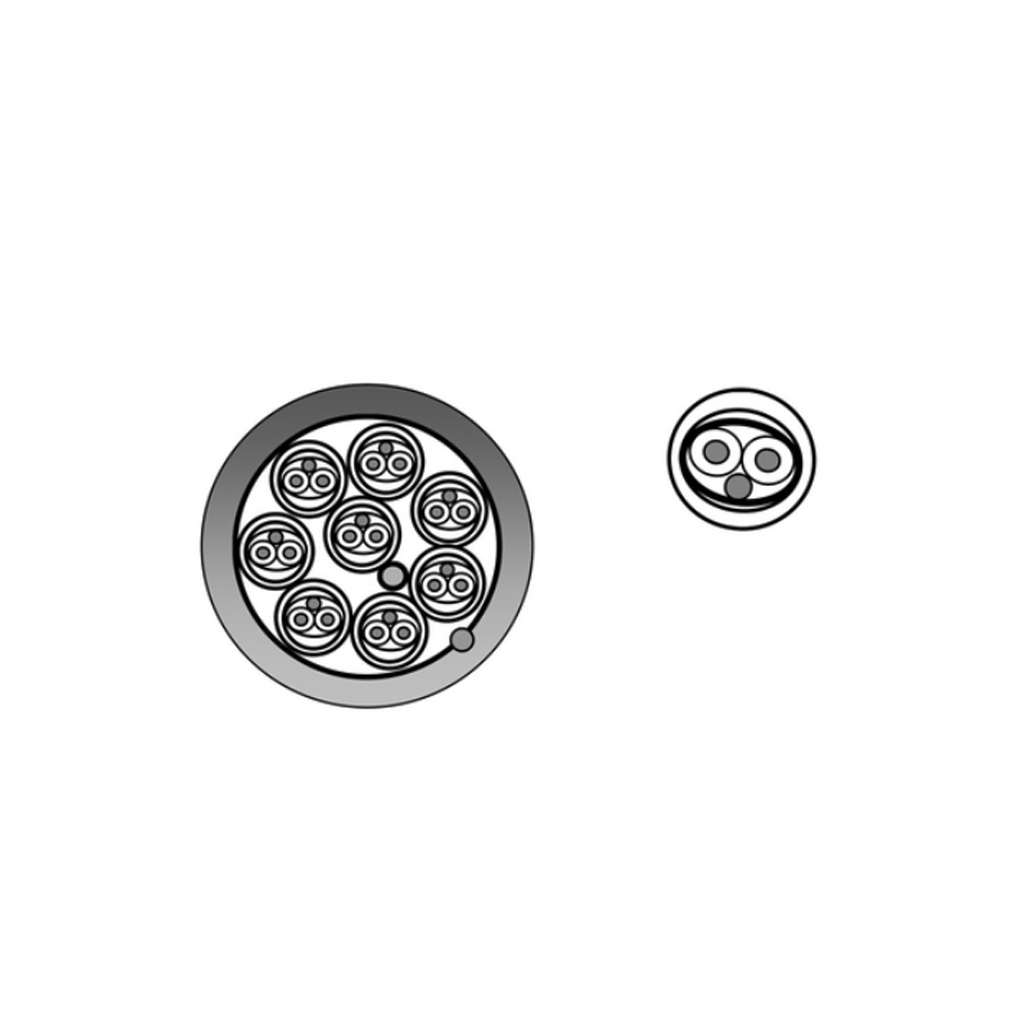

BELDEN 70054
8 PAIR AES/EBU, 26AWG, ISTP, LSZH
Product Description
DIGITAL AUDIO 8 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 1.10 mm (0.0433 in) | White & Blue |
| Inner Shield | ||
| Material | Coverage | |
| Bi-Laminate (Alum+Poly) | 100% | |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Inner Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 2.90 mm (0.114 in) | |
| Outer Jacket | ||
| Material | Nom. Thickness | Nom. Diameter |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 1.20 mm (0.0472 in) | 12.80 mm |
