BELDEN 70077
1 PAIR AES/EBU, 24AWG, ISTP, spiral serve PVC
Product Description

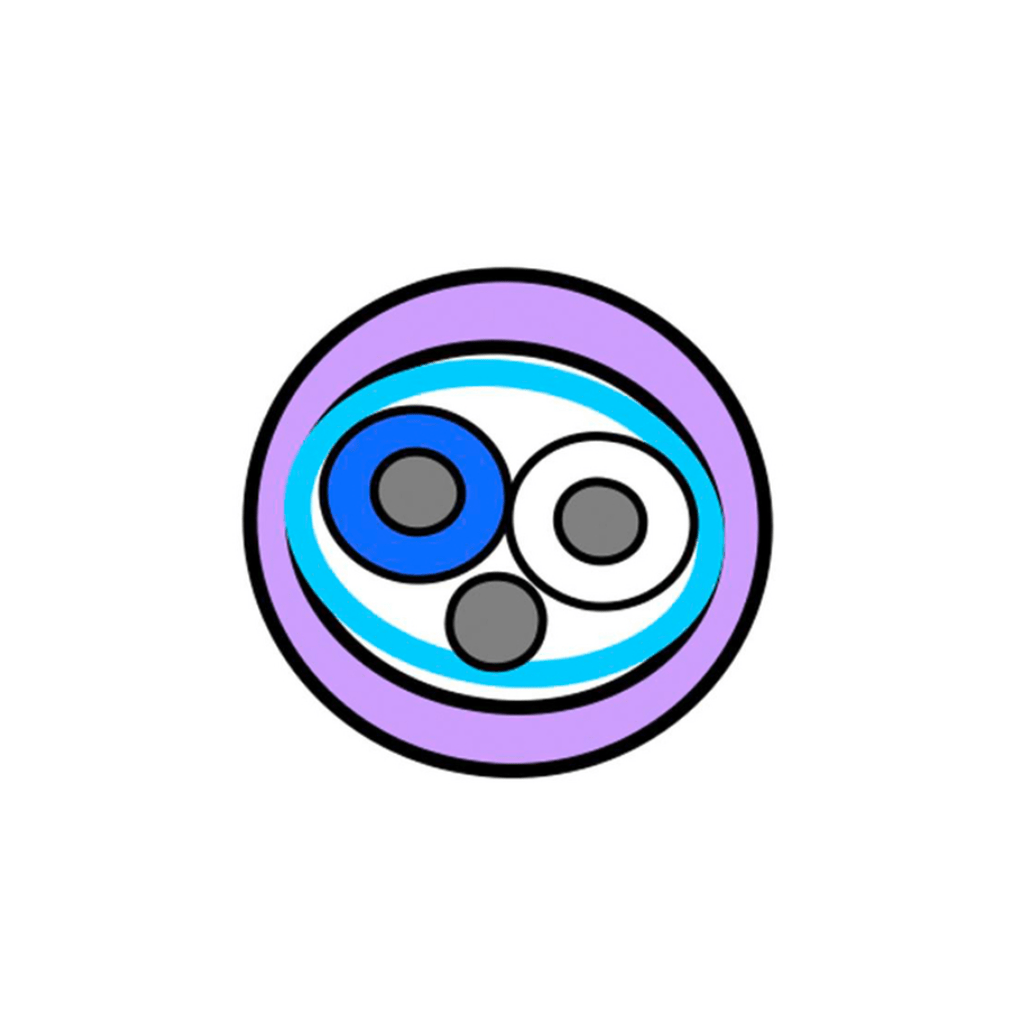

DIGITAL AUDIO 1 PAIR AES/EBU, 24AWG/0.22mm², ISTP,bare copper spiral serve, PVC
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene | 1.55 mm (0.0610 in) | White & Blue |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Spiral Serve / Screen | Bare Copper (BC) | 90% |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| PVC – Polyvinyl Chloride | 6.5 mm | |
