BELDEN 7880A

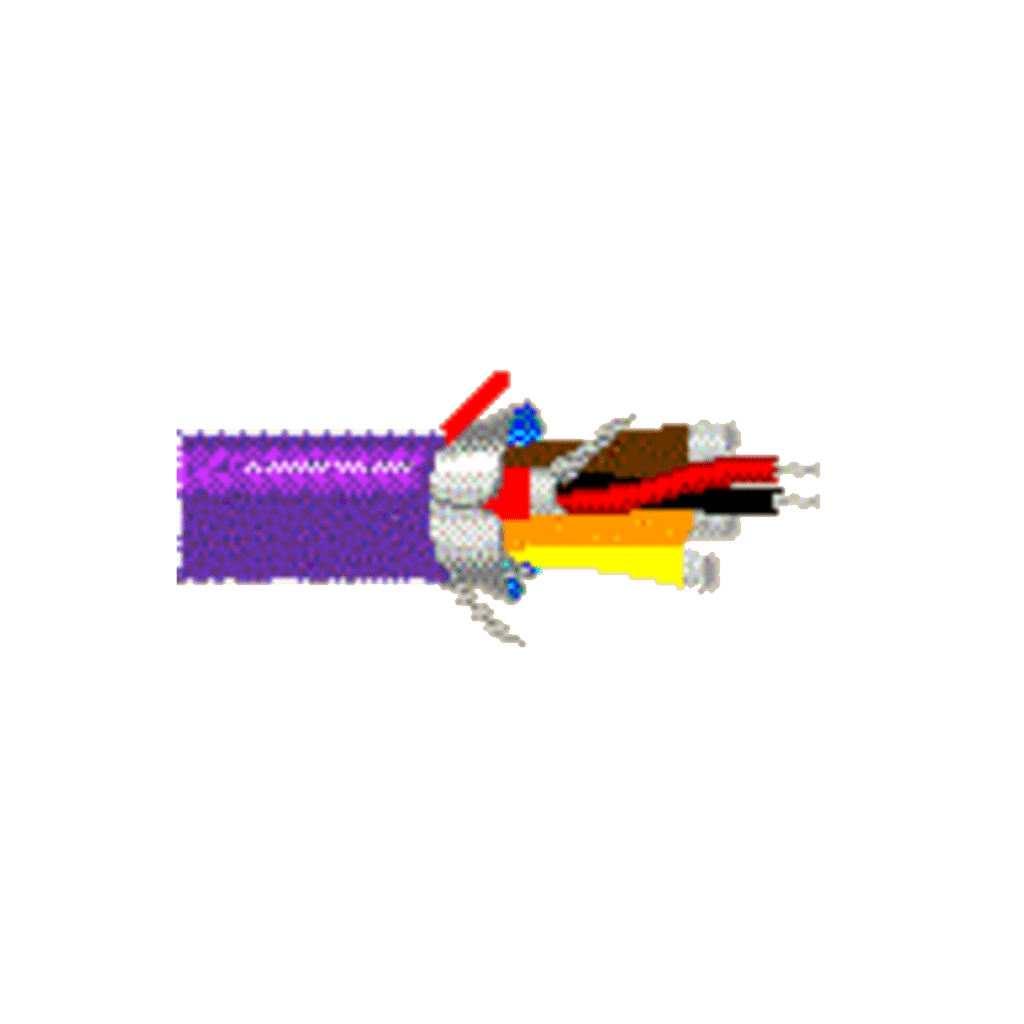

Audio Snake Cable, #26-8pr, TC, Indiv. Shielded, CM
Product Description
Digital Audio Snake Cable, CM-Rated, 8-26 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simultaneously, PVC jacket
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 0.054 in (1.4 mm) | Brown and Numbered 1, Red and Numbered 2, Orange and Numbered 3, Yellow and Numbered 4, Green and Numbered 5, Blue and Numbered 6, Purple and Numbered 7, Gray and Numbered 8 |
| Inner Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Inner Jacket | ||
| Material | Nom. Diameter | |
| PVC – Polyvinyl Chloride | 0.136 in (3.45 mm) | |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Outer Jacket | ||
| Material | Nom. Diameter | Ripcord |
| PVC – Polyvinyl Chloride | 0.541 in | Yes |
