BELDEN 8402
Microphone Cable, 2 Conductor 20 AWG, TC
Product Description

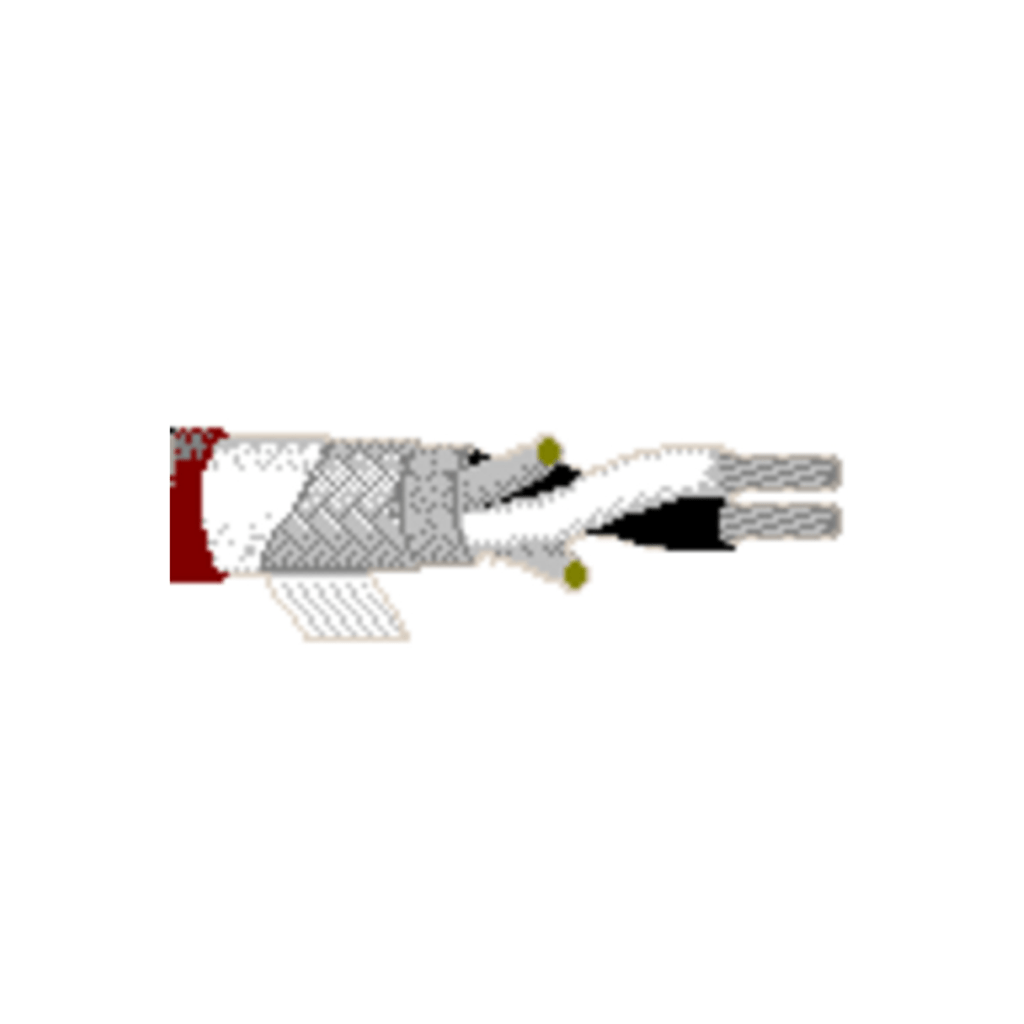

20 AWG stranded (26×34) high-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CSPE – Chlorosulphonated Polyethylene jacket.
Technical Specifications
| Insulation | ||
| Material | Nominal Diameter | |
| EPDM – Ethylene Propylene Diene Monomer | 0.083 in | |
| Outer Shield | ||
| Type | Material | Coverage [%] |
| Braid | Rayon® | 85% |
| Braid | Tinned Copper (TC) | 85% |
