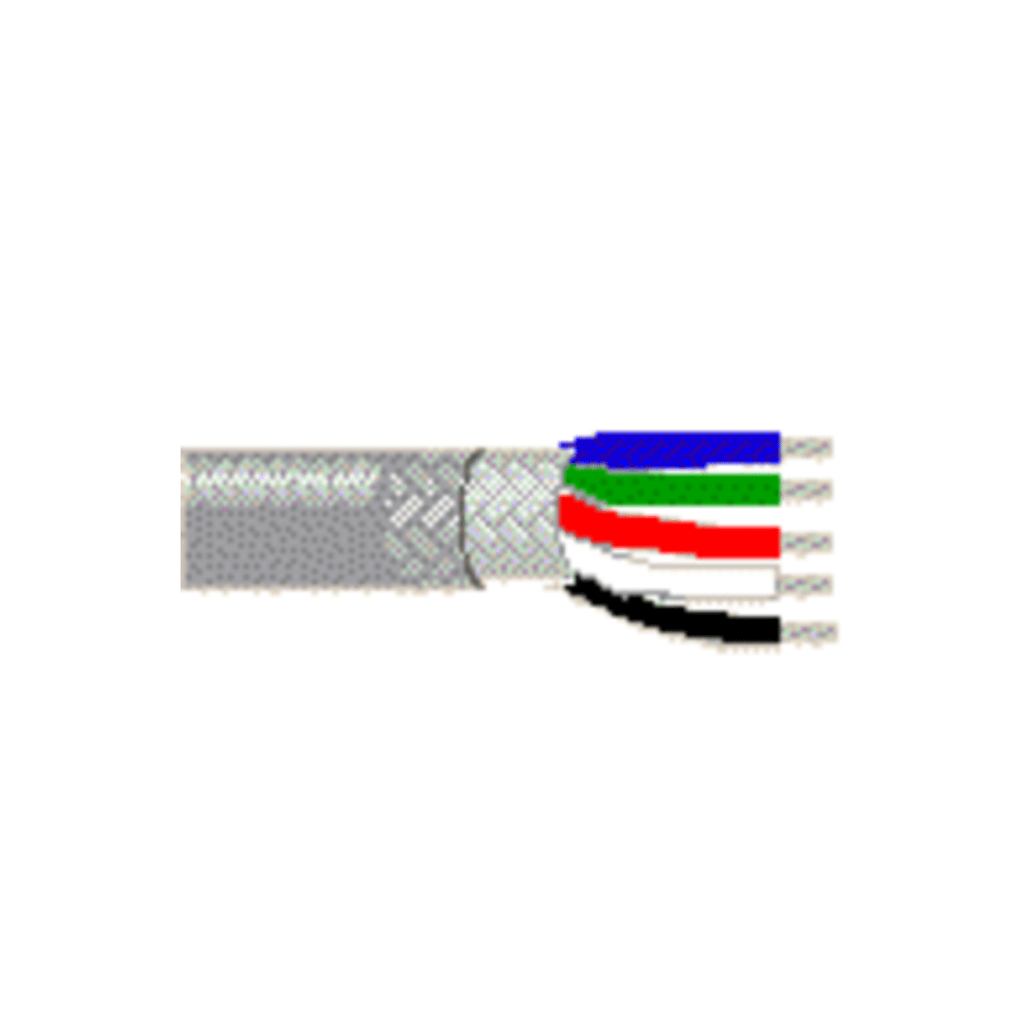

BELDEN 8405
Microphone Cable, 5 Conductor 20 AWG, TC
Product Description
Mic, 20 AWG stranded (19×32) high-conductivity TC conductors, cabled, polyethylene insulation, rayon braid, TC braid shield (85% coverage), PVC jacket
Technical Specifications
| Insulation | ||||
| Material | Nominal Diameter | Nominal Wall Thickness | ||
| PE – Polyethylene | 0.069 in | 0.016 in | ||
| Outer Shield | ||||
| Type | Material | Coverage [%] | ||
| Braid | Rayon® | 85% | ||
| Braid | Tinned Copper (TC) | 85% | ||
| Outer Jacket | ||||
| Material | Nominal Diameter | Min. Wall Thickness | Nominal Wall Thickness | Separator Material |
| PVC – Polyvinyl Chloride | 0.281 in | 0.005 in | 0.035 in | Cotton Serve |
