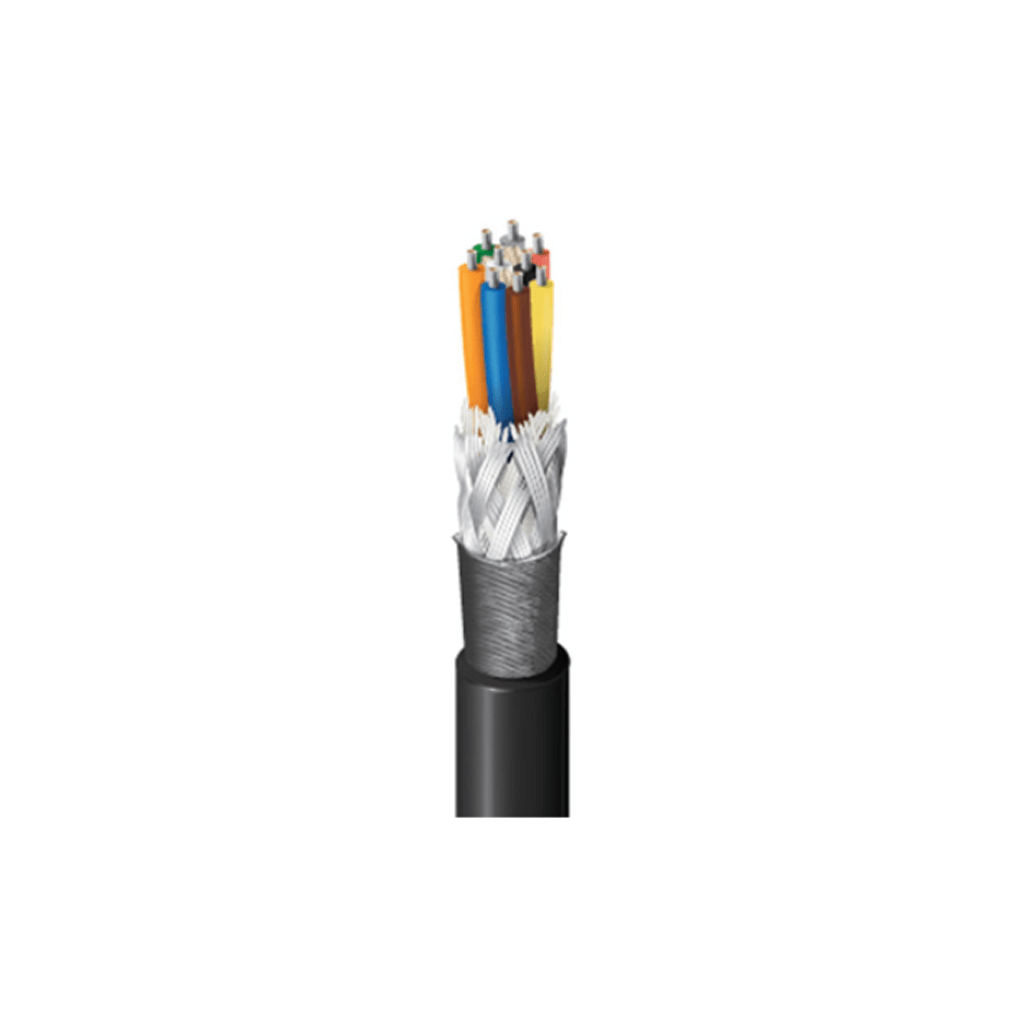

BELDEN 8418
Microphone Cable, 8 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt, Flexible
Product Description
Microphone Cable, 8 Conductor 20 AWG (26 x 34) Tinned Copper (High Conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket, Flexible
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM – Ethylene Propylene Diene Monomer | 0.023 in (0.58 mm) | 0.083 in (2.1 mm) | Black, White, Brown, Green, Red, Yellow, Orange, Blue |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Rayon® | 85% | ||
| Braid | Tinned Copper (TC) | 85% | ||
