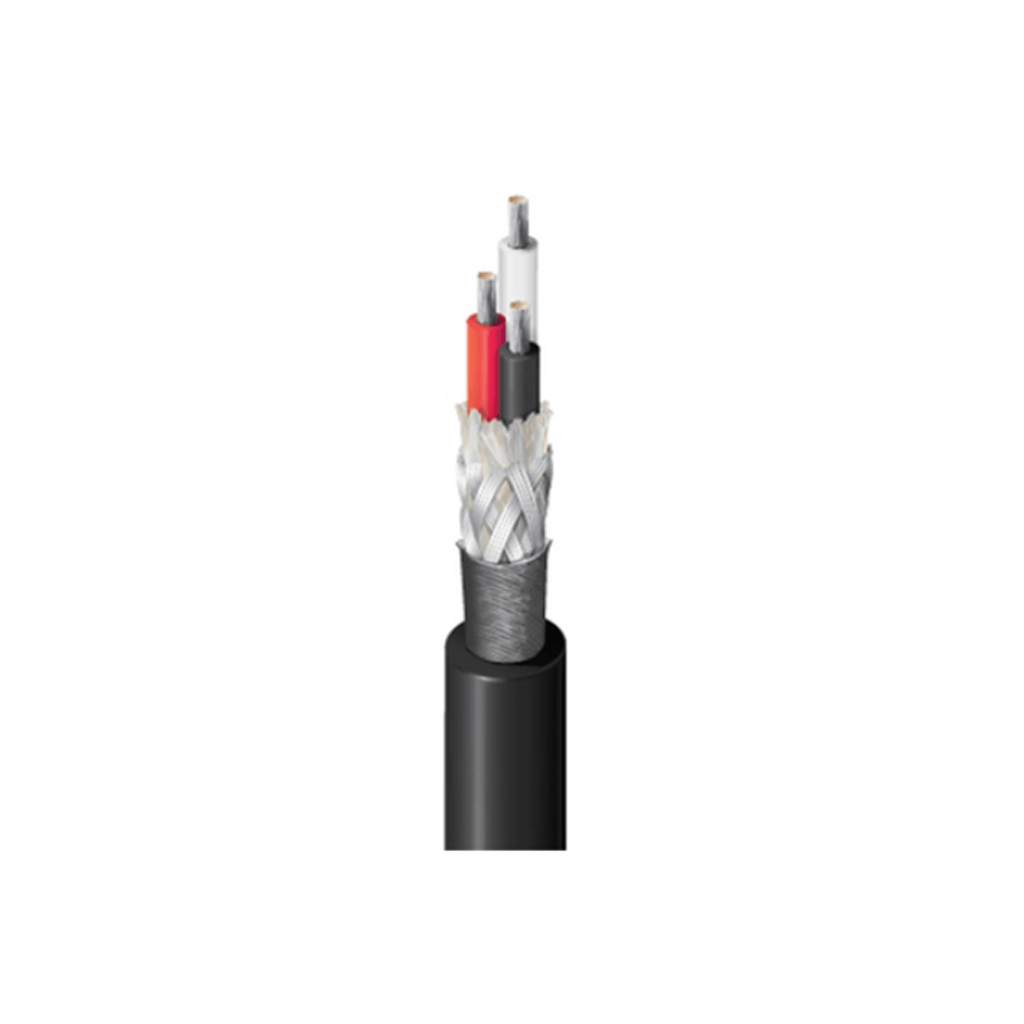

BELDEN 8423
Microphone Cable, 3 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt
Product Description
Microphone Cable, 3 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM – Ethylene Propylene Diene Monomer | 0.023 in (0.58 mm) | 0.083 in (2.1 mm) | White, Black, Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Braid | Rayon® | 83% | ||
| Braid | Tinned Copper (TC) | 83% | ||
