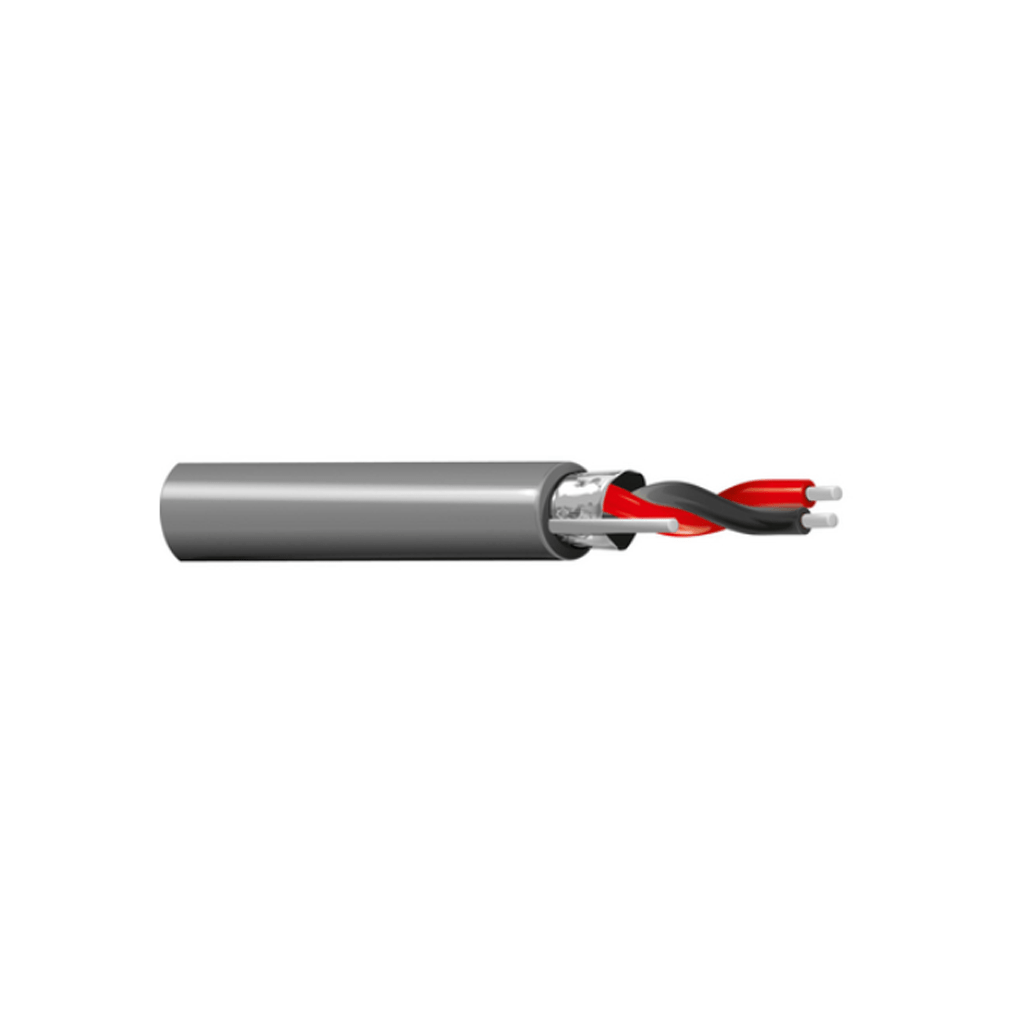

BELDEN 8450
Audio & Instrumentation, #22-1pr, TC, O/A Foil, CM
Product Description
22 AWG solid tinned copper conductors, polypropylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG solid TC drain wire, PVC jacket
Technical Specifications
| Insulation | ||
| Material | Nom. Thickness | Color Code |
| PP – Polypropylene | 0.018 in (0.46 mm) | Black & Red |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Outer Jacket | ||
| Material | Nom. Thickness | Nom. Diameter |
| PVC – Polyvinyl Chloride | 0.018 in (0.46 mm) | 0.118 in |
