BELDEN 8451
Audio & Instrumentation, 1 Pair 22 AWG, TC, O/A Foil, CM
Product Description

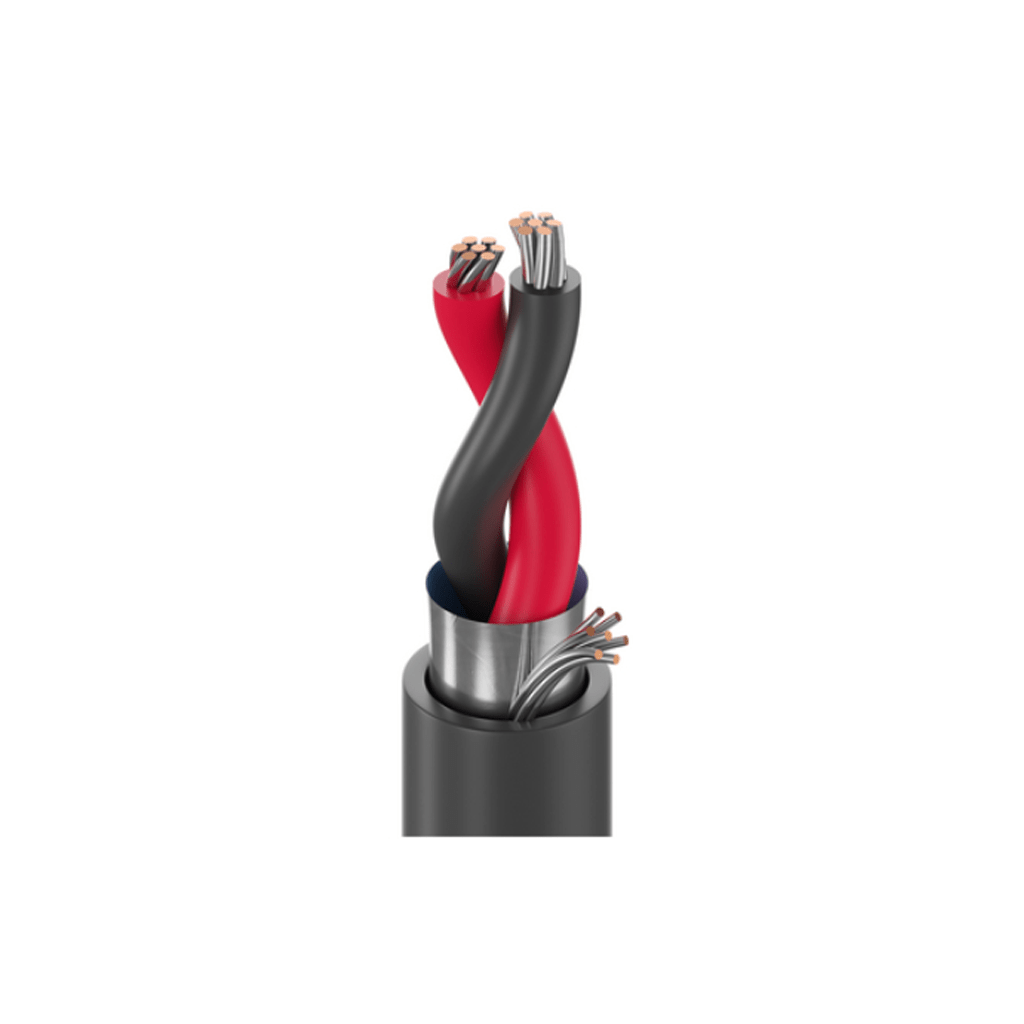

1 Pair 22 AWG stranded (7×30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP – Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.138 in (3.51 mm) | ||
