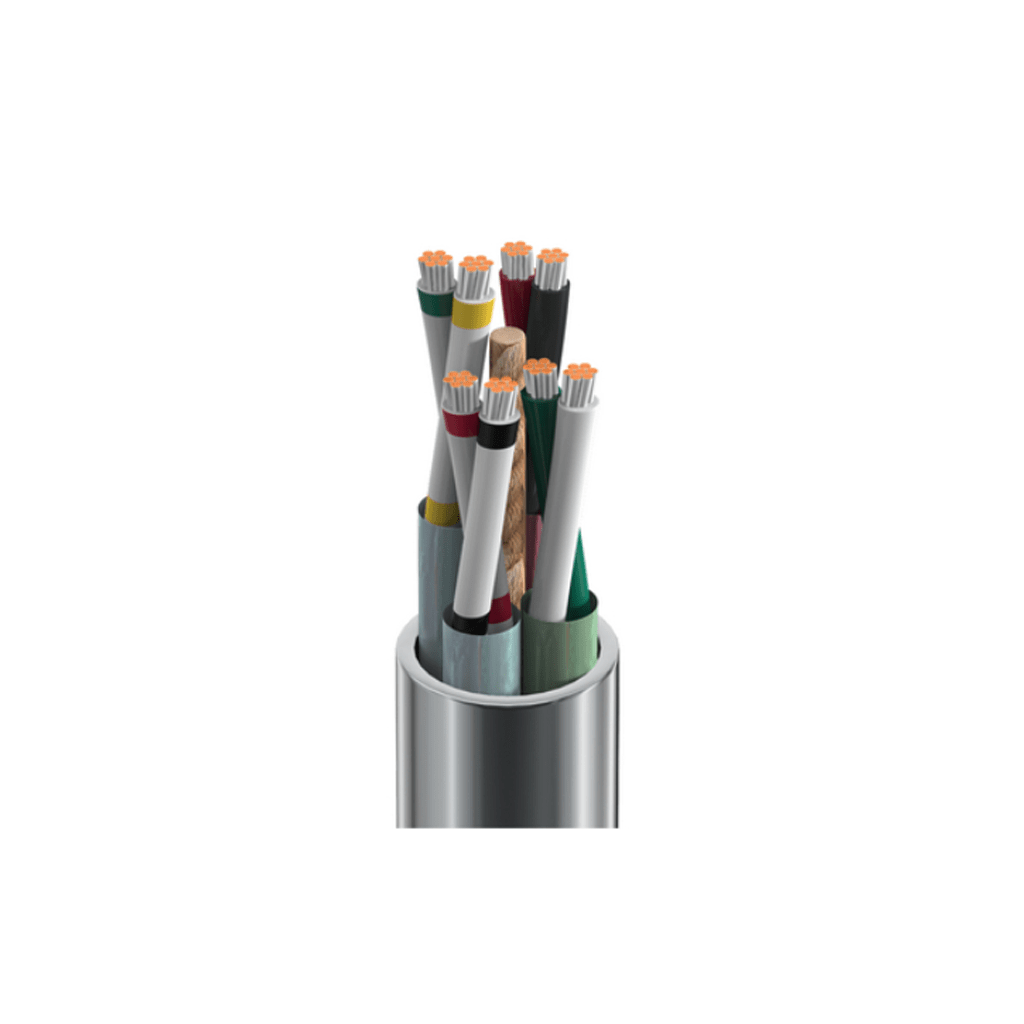

BELDEN 8725
Audio, Control and Instrumentation Cable, 4 Pr #20 Str TC, Ind. Shielded, PVC Jkt, CM
Product Description
Audio, Control & Instrumentation Cable, 4 Pair 20 AWG (7 x 28) Tinned Copper, PP Insulation, Individually Foil Shielded, PVC Jacket, CM
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.015 in (0.38 mm) | 0.068 in (1.7 mm) | Red & Black, Green & White, White/Red Stripe & White/Black Stripe, White/Green Stripe & White/Yellow Stripe |
| Inner Shield | ||||
| Element | Shield Type | Material | Coverage | Drainwire Type |
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.030 in (0.76 mm) | 0.336 in (8.53 mm) | ||
