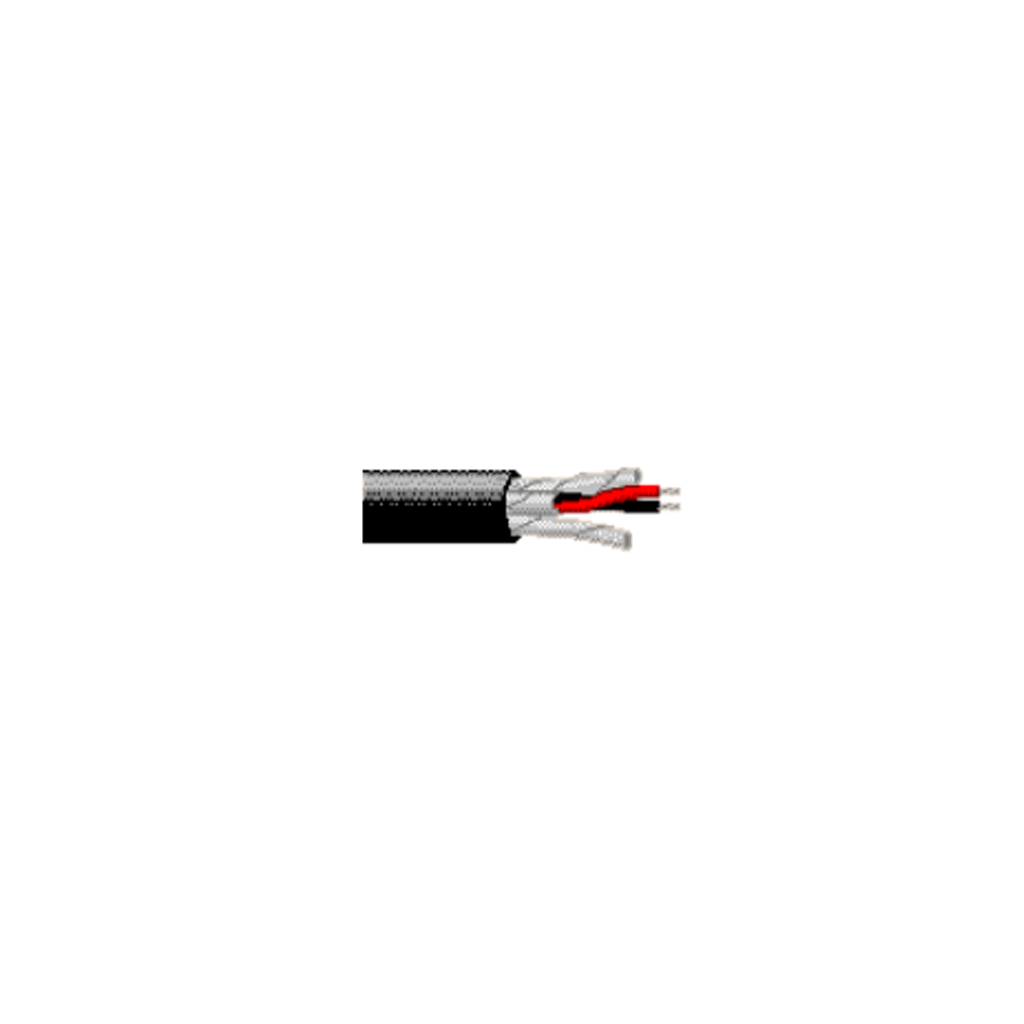

BELDEN 8777SB
Audio & Instrumentation, #22-3pr, TC, Indiv. Shielded, Shipboard
Product Description
22 AWG stranded (7×30) tinned copper conductors, twisted pairs, polypropylene insulation, individually Beldfoil® shielded (100% coverage), 22 AWG stranded tinned copper drain wire each pair, LSZH jacket
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP – Polypropylene | 0.01 in (0.25 mm) | 0.05 in (1.3 mm) | Black & Red, Black & White, Black & Green |
| Inner Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.034 in (0.86 mm) | 0.273 in | |
