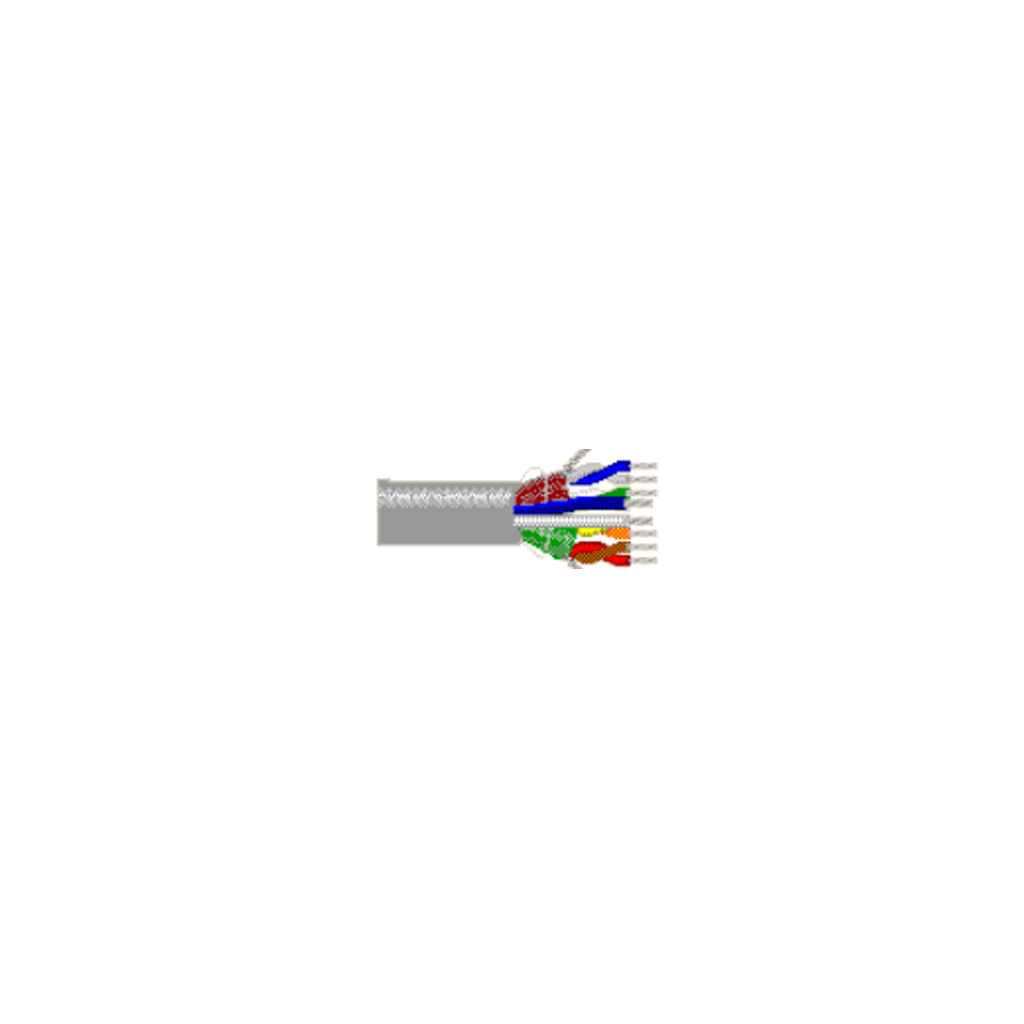

BELDEN 8787
Audio, Control and Instrumentation, 8 Conductor 24 AWG, Shielded Quads; 2 Conductor 22 AWG Unshielded
Product Description
8 Conductor 24 AWG stranded (7×32) TC, shielded quads, polyethylene insulation, 24 AWG stranded TC drain wire; 2 Conductor 22 AWG stranded (7×30) TC , Unshielded, PVC insulation, PVC jacket.
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PE – Polyethylene | 0.012 in (0.30 mm) | 0.048 in (1.2 mm) | Red Quad, White, Green Quad, Blue |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.060 in (1.5 mm) | Gray, White, Blue, Green, Red Beldfoil®, Brown, Red, Yellow, Orange, Green Beldfoil®, White, Blue, Unshielded |
| Inner Shield | ||||
| Element | Shield Type | Material | Coverage | Drainwire Type |
| Over Quad | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Over Quad | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
