BELDEN 8790

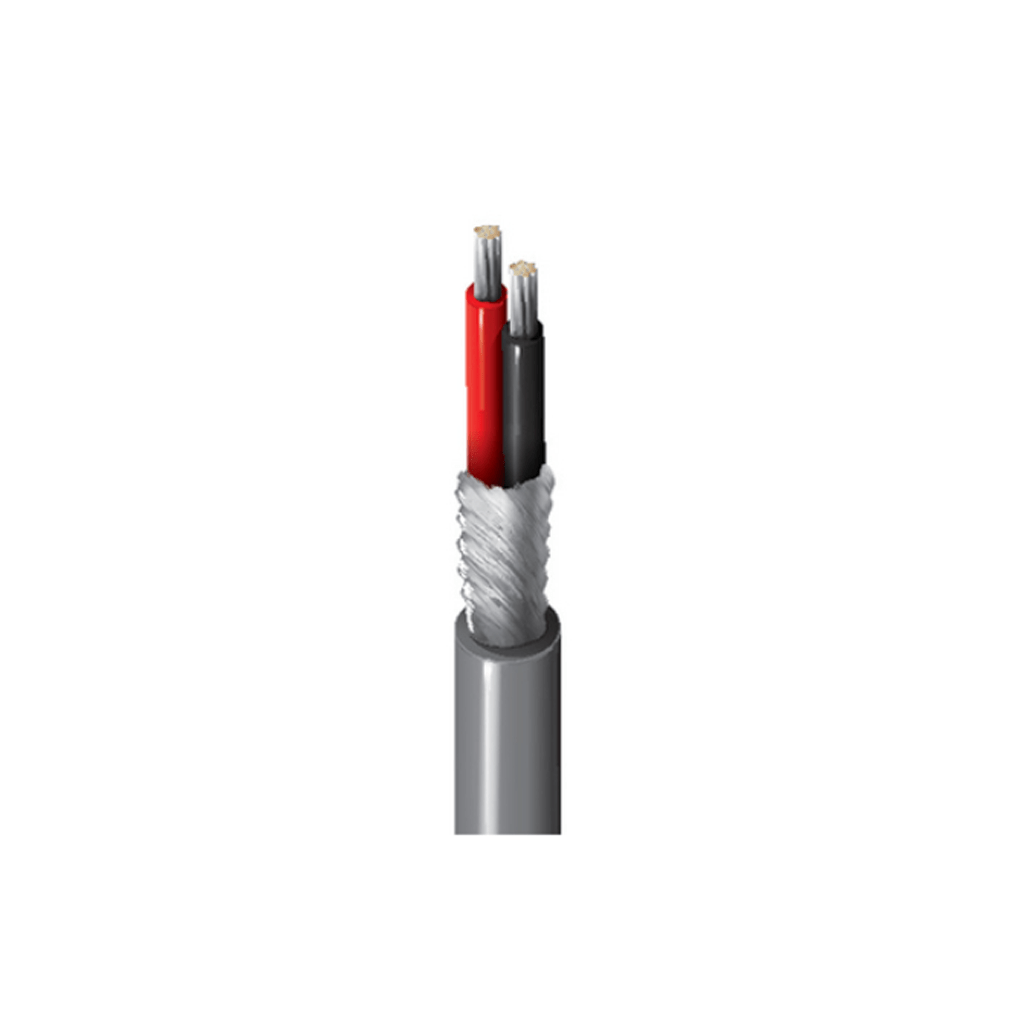

Line Level Audio Cable, 1 Pr #18 Str TC, 85% TC Spiral Serve, PVC Jkt, CMG
Product Description
Line Level Audio Cable, 1 Pair 18 AWG (7 x 26) Tinned Copper PVC insulation, 85% Tinned Copper Spiral Serve/Screen, PVC Jacket, CMG
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC – Polyvinyl Chloride | 0.022 in (0.56 mm) | 0.090 in (2.3 mm) | Red & White |
| Outer Shield | ||||
| Shield Type | Material | Coverage | ||
| Spiral Serve / Screen | Tinned Copper (TC) | 85% | ||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.028 in (0.71 mm) | 0.241 in (6.12 mm) | ||
