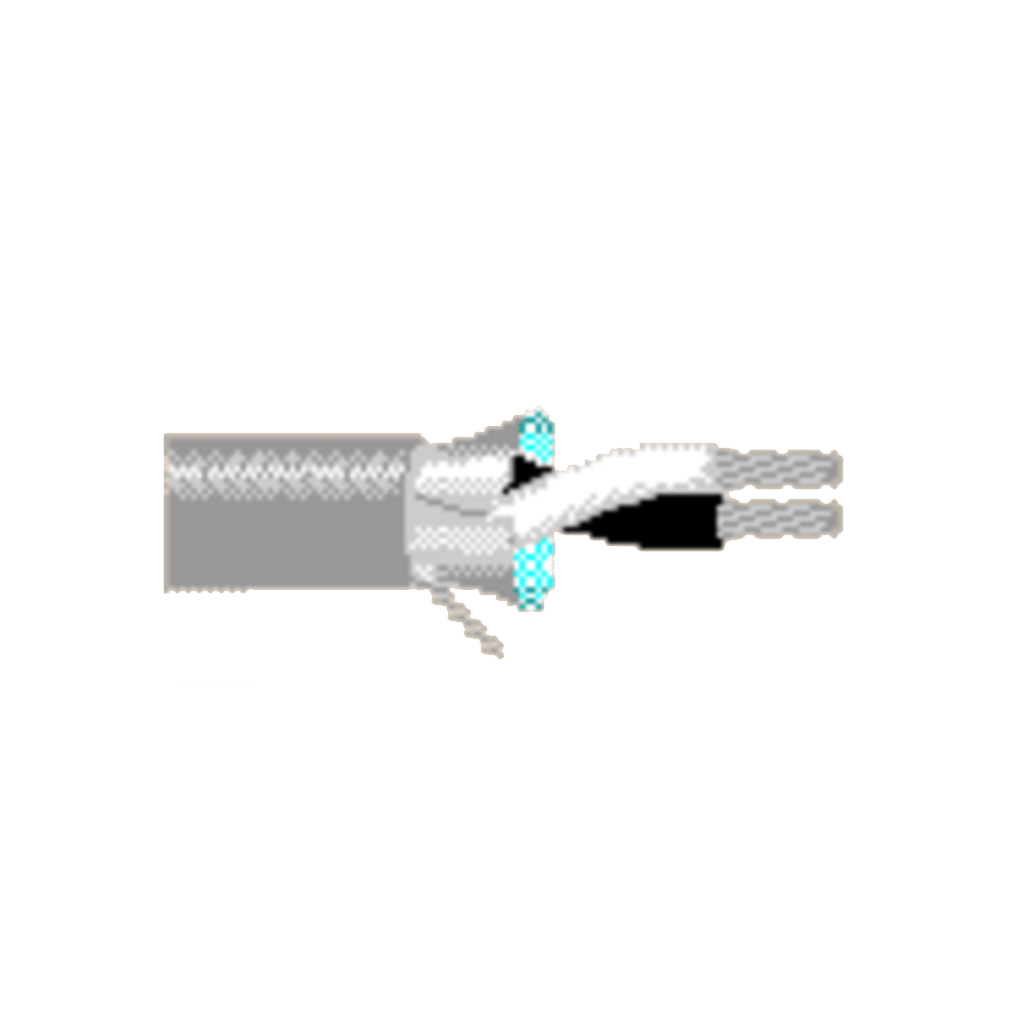

BELDEN 9180
Audio Cable, #26-1pr, TC, O/A Foil, CM
Product Description
Audio Cable, 110 Ohm, 26 AWG stranded (7×34) .018” TC conductors, Datalene® insulation, twisted pair, Beldfoil® shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene (Foam) | 0.015 in (0.38 mm) | 0.049 in (1.2 mm) | Black & White |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | |
| PVC – Polyvinyl Chloride | 0.022 in (0.56 mm) | 0.144 in | |
