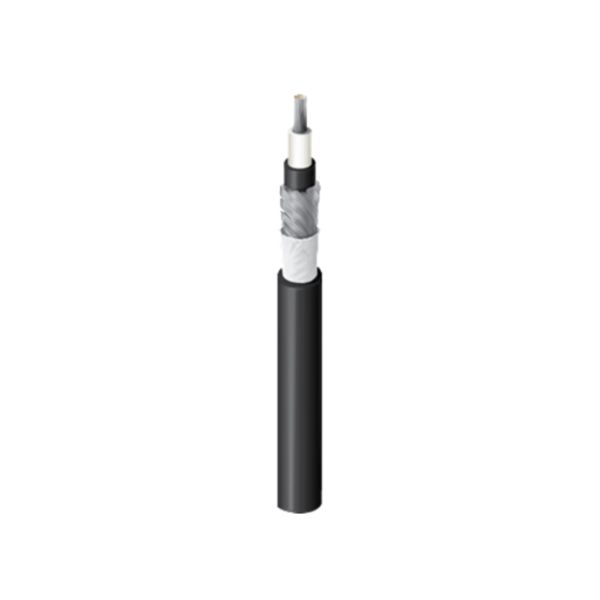

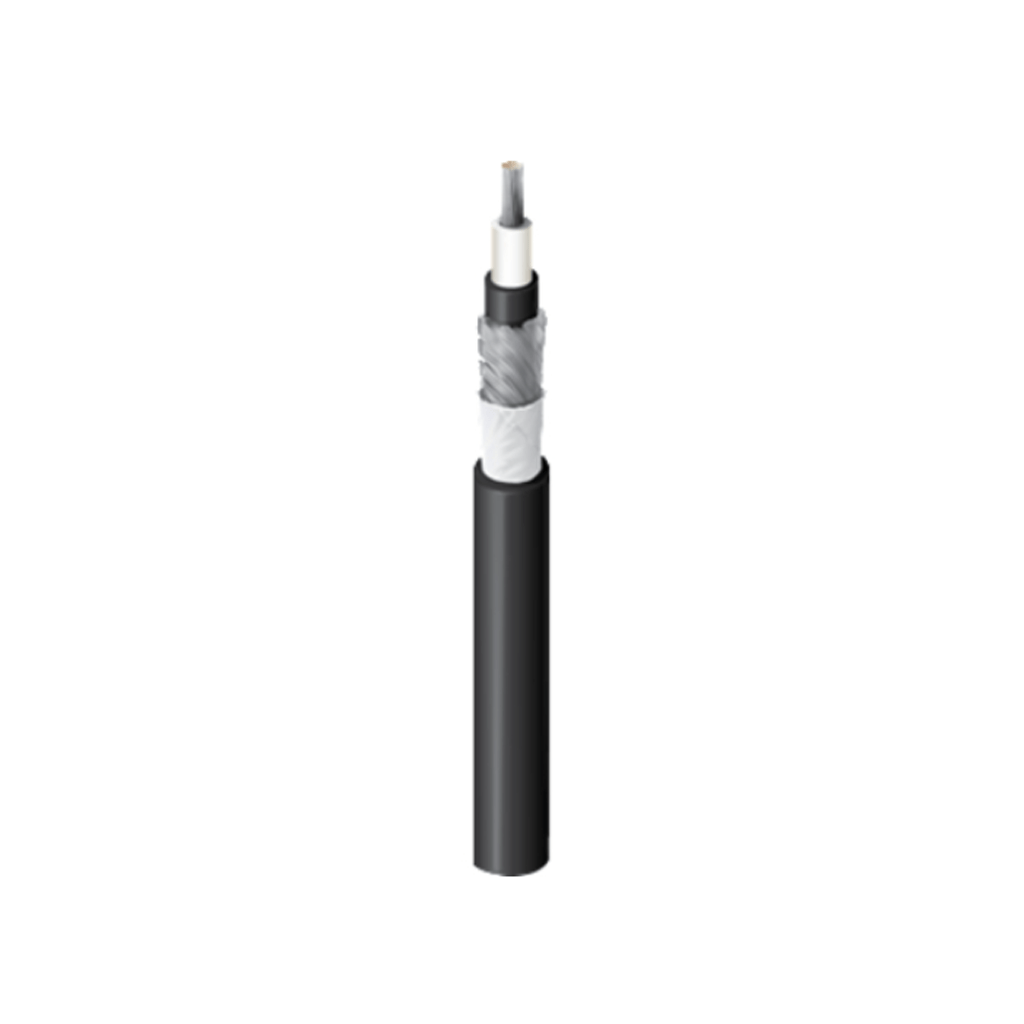

BELDEN 9395
Microphone Cable, 1 Conductor 18 AWG, TC
Product Description
18 AWG stranded (41×34) high-conductivity TC condcutor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (70% coverage), paper tape, CPE jacket.
Technical Specifications
| Insulation | |||
| Material | Nom. Insulation Diameter | Color Code | |
| EPDM – Ethylene Propylene Diene Monomer | 0.137 in (3.48 mm) | White | |
| Outer Shield | |||
| Layer | Outer Shield Type | Material | Coverage |
| 1 | Spiral Serve / Screen | Textile (Conductive) | 100% |
| 2 | Spiral Serve / Screen | Tinned Copper (TC) | 70% |
| 3 | Tape | Conductive Dacron Tape | 100% |
| Outer Jacket | |||
| Material | Nom. Diameter | ||
| CPE – Chlorinated Polyethylene | 0.235 in (5.97 mm) | ||
