BELDEN 9397

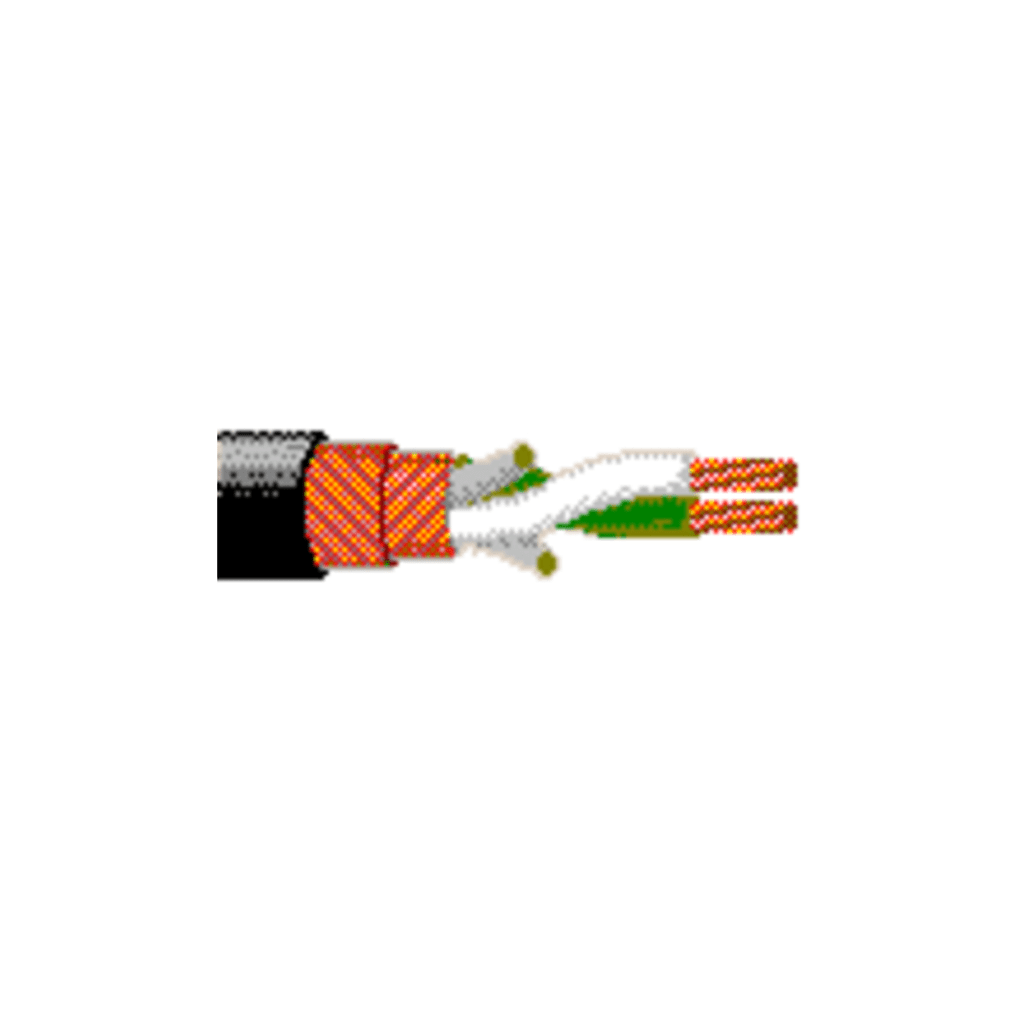

Microphone Cable, 2 Conductor 24 AWG, BC
Product Description
24 AWG stranded (105×44) high-conductivity bare copper conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC jacket
Technical Specifications
| Insulation | ||
| Material | Nominal Diameter | Nominal Wall Thickness |
| PVC – Polyvinyl Chloride | 0.048 in | 0.012 in |
| Outer Shield | ||
| Type | Material | Coverage [%] |
| Spiral Serve / Screen | Bare Copper (BC) | 95% |
| Outer Jacket | ||
| Material | Nominal Diameter | Nominal Wall Thickness |
| PVC – Polyvinyl Chloride | 0.176 in | 0.031 in |
