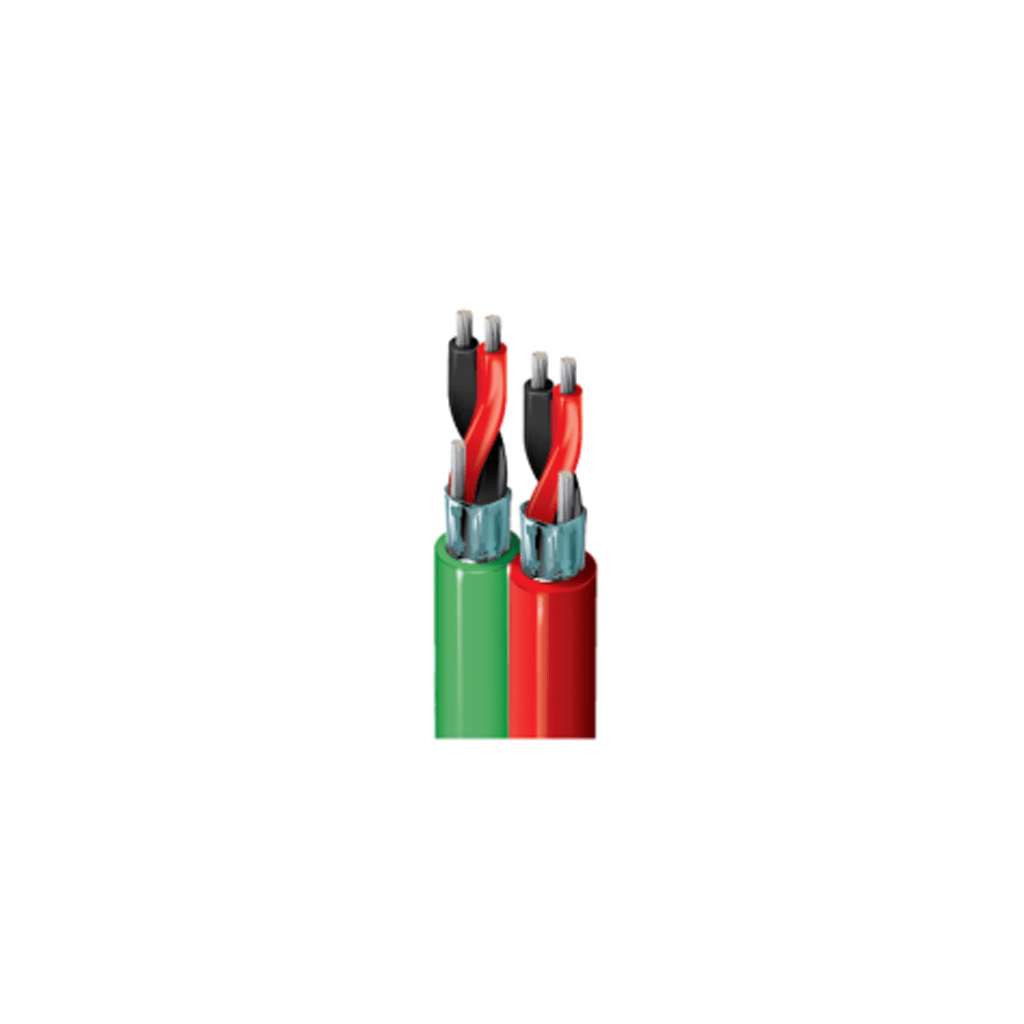

BELDEN 9451D
Line Level Audio Cable, 2 Parallel Pr #22 Str TC, O/A Foil, PVC Jkt, CMR
Product Description
Line Level Audio Cable, 2 Parallel Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.135 in (3.43 mm) | ||
